products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
14 Segment LED Display
Created with Pixso.

0 .54 Inch Common Anode 14 Segment Led Display 2 Digit Super Bright Green

name

0 .54 Inch Common Anode 14 Segment Led Display 2 Digit Super Bright Green

Brand Name: LIGHTBO
Model Number: LB20541IJ1B
MOQ: 1000PCS
Price: negotiable
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Model No:
LB20541IJ1B
Character Height:
0.54 Inches (13.8mm)
Outer Dimensions:
25.2 X 21.1 X 7.8 Mm
Polarity:
Common Anode
Colour:
Super Bright Green
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

14 seg display

,

led 14 segment display

Product Description


0 .54 Inch Common Anode 14 Segment Led Display 2 Digit Super Bright Green

Product Description:
Character height:0.54 inches (13.8mm)
Outer dimensions:25.2 x 21.1 x 7.8 mm
Polarity:Common Anode
Colour:Super Bright Green
Absolute Maximum Ratings(Ta=25℃)


Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40～+85 ℃
Storage Temperature Range Tstg -40～+85 ℃
Solder Temperature(3 sec) Th 260 ℃

Code:J-Ultra Bright Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA   5   V
Luminous Intensty(Per dice) Iv If=20mA 40   50 mcd
Spectrum With Of Half Value △ If=20mA   30   nm
Wavelength D If=20mA 569   573 nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse Ifp 70 mA
Operating Temperature Range Torp -35℃～+85℃
Storage Temperature Range Tstg -35℃～+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃

Product Feature:
High efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Industrial standard size
Stable performance
Long lifetime
Easy assembly
RoHS directive-compliant
Color: red, green, blue and white

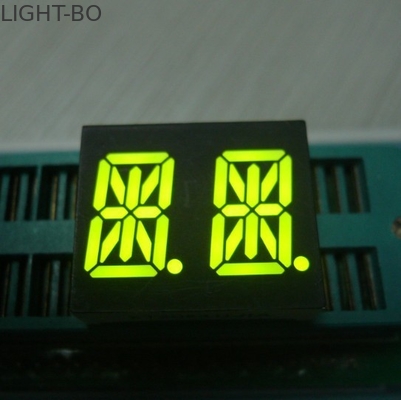

0 .54 Inch Common Anode 14 Segment Led Display 2 Digit Super Bright Green 00 .54 Inch Common Anode 14 Segment Led Display 2 Digit Super Bright Green 1
0 .54 Inch Common Anode 14 Segment Led Display 2 Digit Super Bright Green 20 .54 Inch Common Anode 14 Segment Led Display 2 Digit Super Bright Green 3
0 .54 Inch Common Anode 14 Segment Led Display 2 Digit Super Bright Green 4
Application:
Audio equipment or instrument panels
General use for digital indicators
Multimedia products
