Temperature Control LED Display
Created with Pixso.

SGS Custom LED Display , Multi color 7 Segment Display for temperature humidity defrost

SGS Custom LED Display , Multi color 7 Segment Display for temperature humidity defrost

Brand Name: LIGHTBO
Model Number: LB30523LR1B
MOQ: 1000PCS
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Dimensions:
40*19*8MM
Digit Height:
0.52inch( 13.2mm)
Polarity:
Common Anode
LED Color:
Ultra Bright Red
Luminous Intensity:
70-80mcd
Forwqard Voltage:
1.8-2.3V/led
Forward Current:
12-15mA/LED
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

7 segment numeric display

,

low power 7 segment display

Product Description

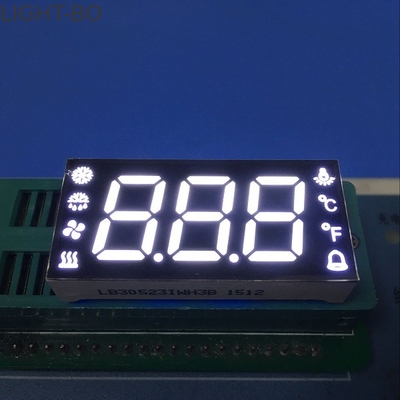

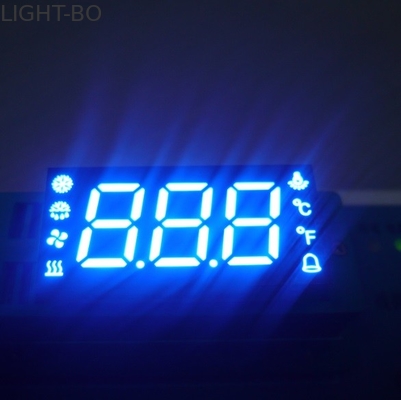

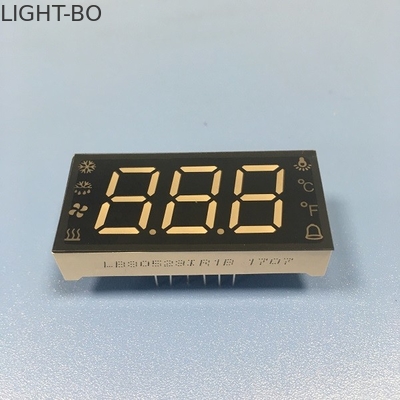

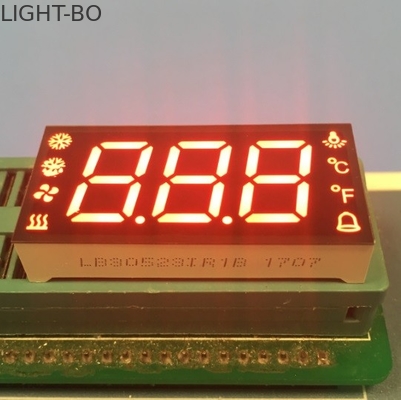

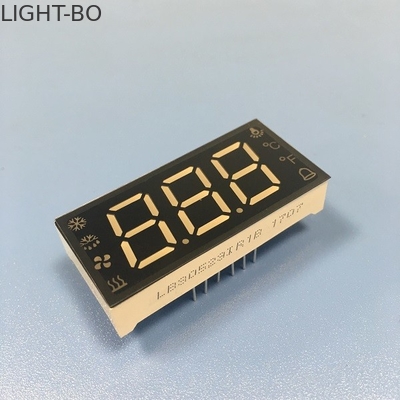

SGS Custom LED Display , Multi color 7 Segment Display for temperature humidity defrost



  • Key Specifications/Special Features:

  •

  • 3 digit 7 segment led displays

  • Character height: 13.2mm (0.52")

  • Outer dimensions: 40 x 19 x 8mm

  • Polarity: common anode

  • Ultra bright red

  • Wavelength: 620-625nm

  • Luminous intensity:70-80mcd

  • Forward voltage: 1.8-2.3V/led

  • Recommanded forward current: 12-15mA/led

  • With white segments and black surface with film

  • Emitting Colors:available in red, blue, green, white, amber, yellow and orange

  • High luminous intensity and reliability

  • Low power consumption

  • Stable performance

  • Long lifetime

  • Easy assembly

  • IC compatible

  • Certificate: RoHS

  •

  • Applications:

  • Home electronic appliances, thermosats application,cooling,heating,air conditioner control,refrigerator control,temperatue indicators and so on .
