Product Details:
|
| Outer Dimensions: | 54*19*17.5mm | Digit Height: | 12.7mm (0.5") |
|---|---|---|---|
| Polarity: | Common Anode | Emitting Color: | Green / Red |
| Application: | Washing Machine | Forward Current: | 10-15mA/ Dice |
| High Light: | 7 segment numeric display,seven segment led display |
||

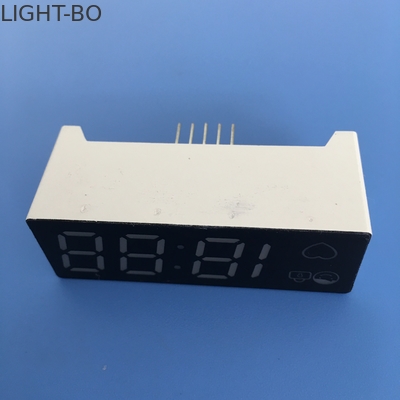

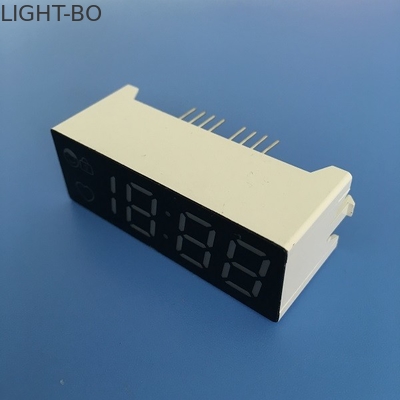

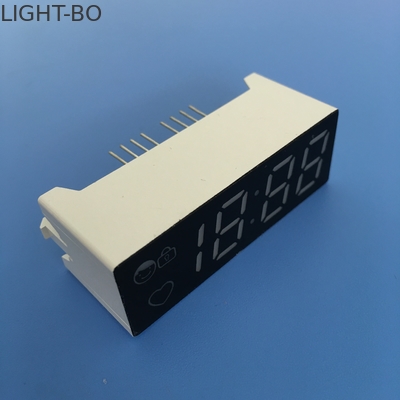

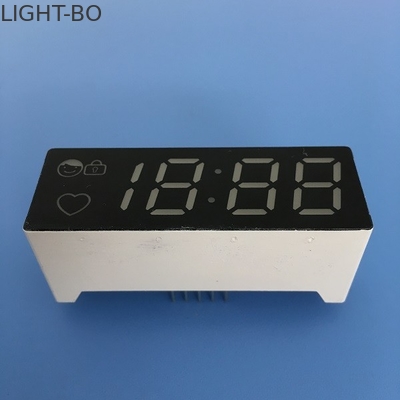

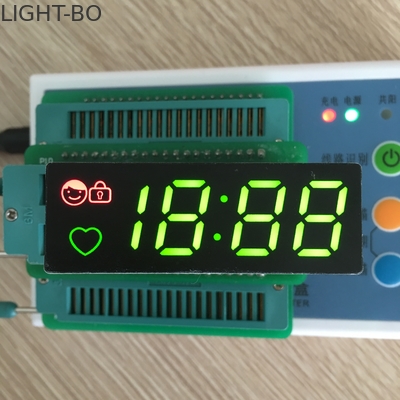

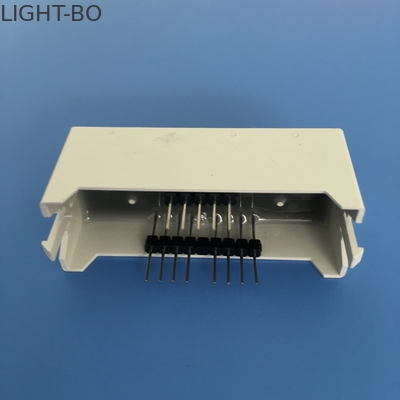

Custom Design ultra green and ultra red 7segment led clock display common anode for washing machine
| Descriptions | Custom 4 digit 7 segment led clcok display |
| Dimensions | 54*19*17.5mm |
| Digit height | 12.7mm (0.5") |
| Polarity | Common anode |
| Elitting Color | ultra bright green/red |
| Wavelength | 569-573nm/630-635nm |
| Luminous Intensity | 40-50mcd/60-70mcd |
| Forward voltage | 1.8-2.5v/dice |
| Forward current | 10-15mA/ dice |
Custom design
High luminous intensity and reliability
Low power consumtion
Stable performance
Continuous uniform segments
Easy mounting
IC Compatible
Long lifetime
Meet RoHS Compliant
LED Color: available in red,blue, green, white, amber, orange
Applications: widely used for home appliances,washing machine ,oven timer, microwave oven timer, instrument panel and so on.
