Product Details:
|
| Outer Dimensions: | 78*19*9mm | Digit Height: | 12mm (0.47inch) |
|---|---|---|---|
| Polarity: | Common Cathode | Emitting Color: | Super Bright Yellow |
| Application: | Sound, Radio,Speaker | Dimensions: | 78*19*9mm |
| High Light: | 7 segment numeric display,seven segment led display |
||

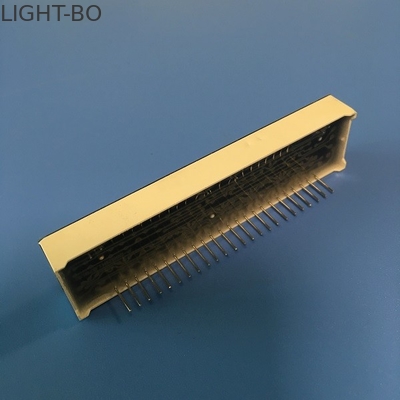

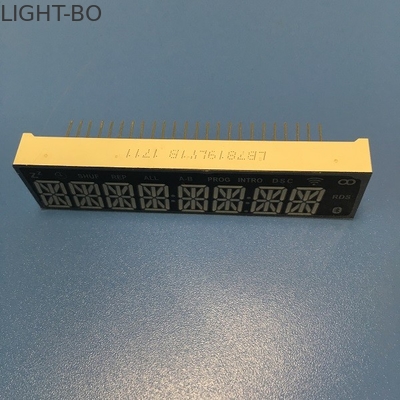

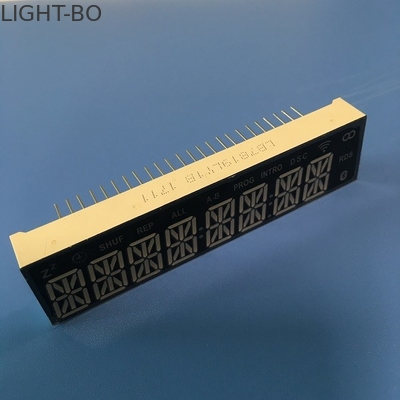

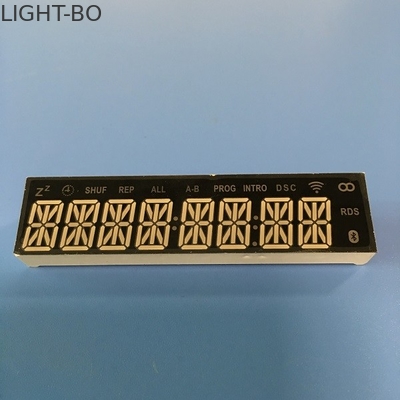

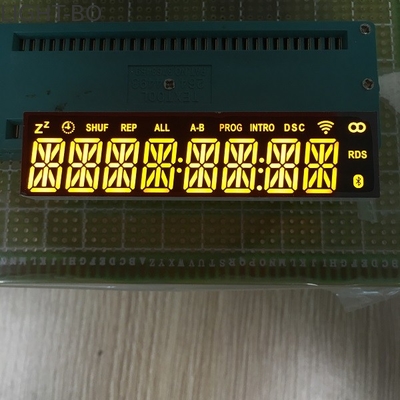

Super bright yellow custom design 8 digit 14 segment led display common cathode for SOUND
| Descriptions | Custom 8-Digit 14 Segment Alphanumeric LED Display |
| Dimensions | 78*19*9mm |
| Digit height | 12mm (0.47") |
| Polarity | Common cathode |
| Elitting Color | Super bright yellow |
| Wavelength | 585-595nm |
| Luminous Intensity | 60-70mcd/dice |
| Forward voltage | 1.8-2.5v/dice |
| Forward current | 12-15mA/ dice |
Custom design
High luminous intensity and reliability
Low power consumtion
Stable performance
Continuous uniform segments
Easy mounting
IC Compatible
Long lifetime
Meet RoHS Compliant
LED Color: available in red,blue, green, white, amber, orange
Applicaton :
Widely used for digital indicators, home aplliances, sound, radio,instrument panel and so on .
