4 Digit Seven Segment Display Common Anode Ultra Bright White For Digital Gas Cooker

4 Digit Seven Segment Display Common Anode Ultra Bright White For Digital Gas Cooker

Brand Name: LIGHTBO
Model Number: LB40491
MOQ: 1000PCS
Price: negotiation
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Digit Height::
0.49 Inch (12.50mm)
Outer Dimensions:
56 X 34 X 8 Mm
Polarity:
Common Anode
Color:
Ultra Bright WHITE
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

low power 7 segment display

,

seven segment led display

Product Description

Custom design Ultra white 4 Digit 7 Segment LED Display for Digital Gas Cooker







Product Descriptions:



Custom 4-Digit 7 Segment LED Display
Dimensions: 54 * 35  * 9 (mm)
Digit Height: 12.5mm (0.49")
Common Anode
Emitting colour: Ultra bright WHITE

X / Y: 0.29-0.31

Luminous Intensity: 80-100mcd

Forward voltage: 2.8-3.5V/LED

Recommanded forward current : 12mA-15mA

Emitting colors: available in red, blue, yellow green, pure green, pure white, amber and orange



Product Features:



High luminous intensity

Low power consumption

Extremely low current

Stable performance

Wide viewing angle

Continuous uniform segments

Long lifespan

Fast heat-dissipation

IC Compatible

Easy assembly

Meet RoHS Compliant



Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260



Code:W-Ultra Bright Blue

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8   3.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 30     V
Luminous Intensty(Per dice) Iv If=20mA 100   120 mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength  Dλ If=20mA 460   465 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃




Applications:



Widely used for set-up boxes, home appliances, temperature indicators, instrument panels and digital oven timers,digital gas cookers and so on.

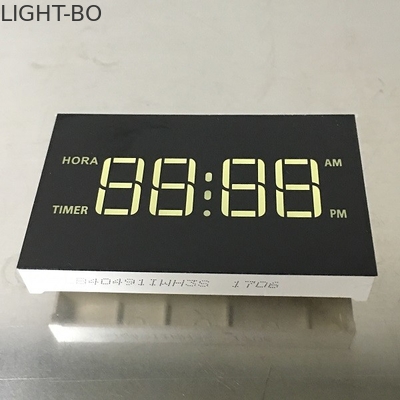

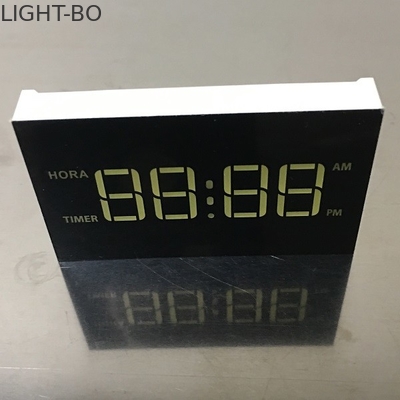

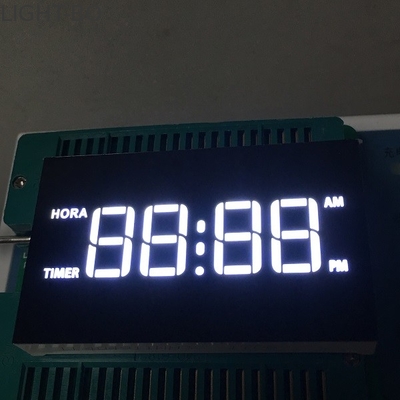

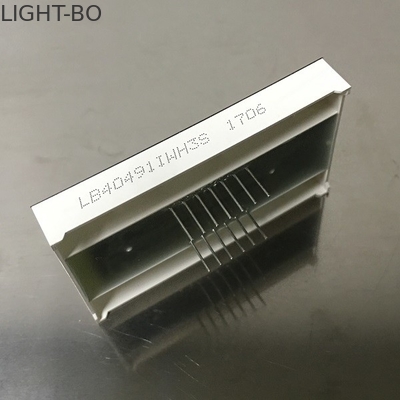

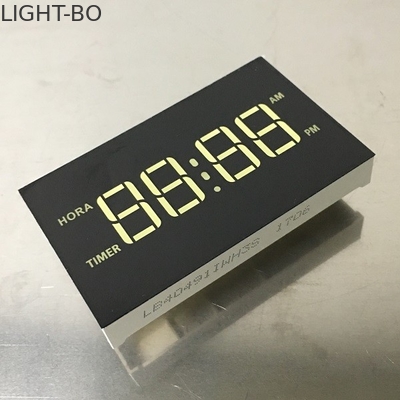

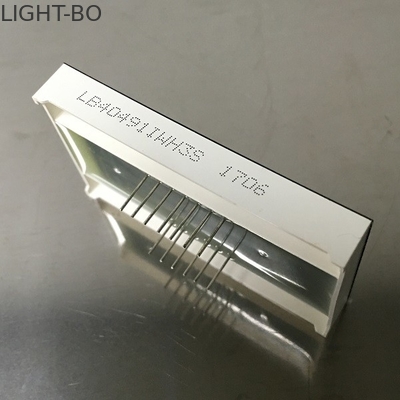

Product Pictures:



4 Digit Seven Segment Display Common Anode Ultra Bright White For Digital Gas Cooker 0
