635nm 10mm 100mcd led 7 segment display For Digital Oven Timer

635nm 10mm 100mcd led 7 segment display For Digital Oven Timer

Brand Name:	LIGHTBO
Model Number:	LB40569
MOQ:	1000PCS
Price:	Negotiation
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Outer Dimension:

58x19x11.6mm

Polarity:

Common Anode

Character Height:

10mm

Emitting Colour:

Ultra Bright Red

Usage:

Indoor

Warranty:

3 Years

Packaging Details:

EPE +CARTON

Supply Ability:

50000PCS/Day

Highlight:

100mcd Led 7 Segment Display

10mm Led 7 Segment Display

635nm LED Seven Segment Display

Product Description

Customized 4 Digit 7 Segment LED Display Common Anode For Digital Oven Timer

Features:

Outer dimensions: 58x19x11.6mm
Digit height: 10mm
Common anode
White segments black surface with film
Emitting color : ultra bright red
Wavelength:625-635nm
Luminous intensity: 80-100mcd
Forward voltage: 1.8-2.3V/led
Forward current:5-15mA/led

Advantages:

High-luminous intensity output
High-efficiency
Low-power consumption
Extremely low-current
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe

show:

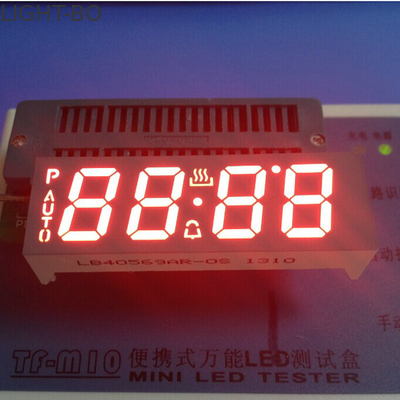

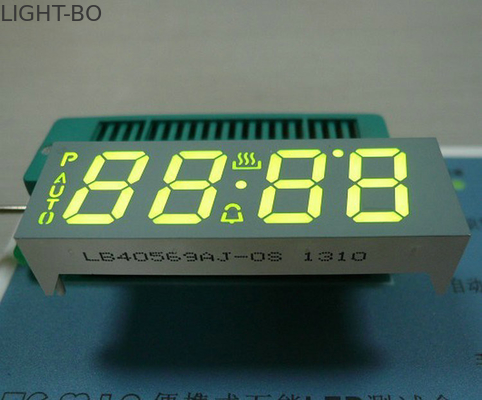

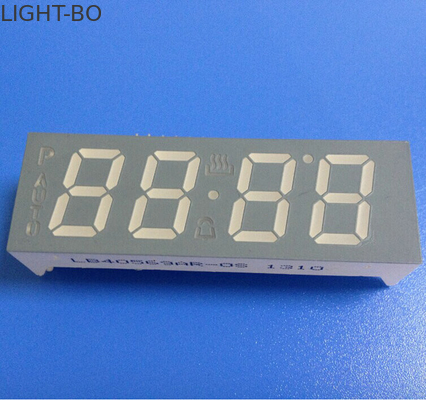

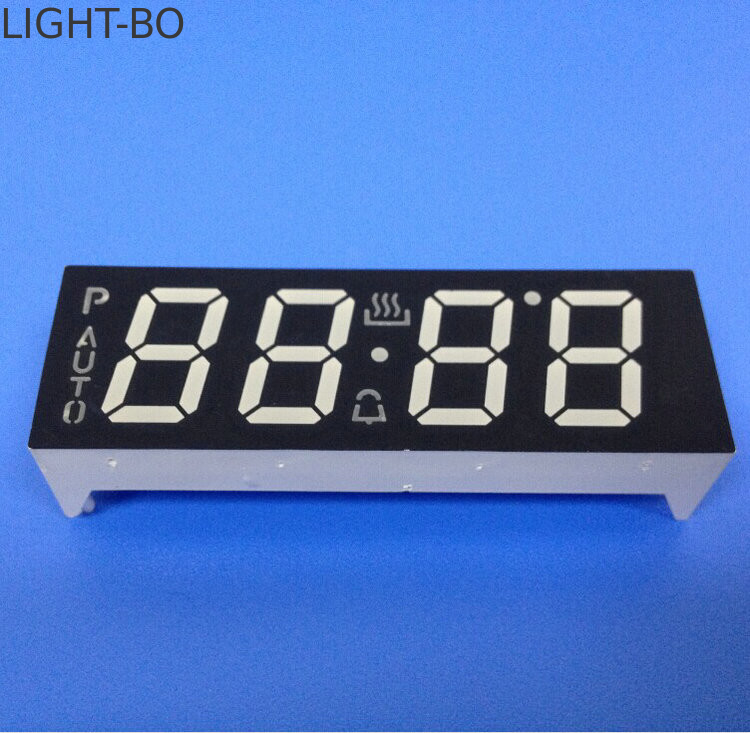

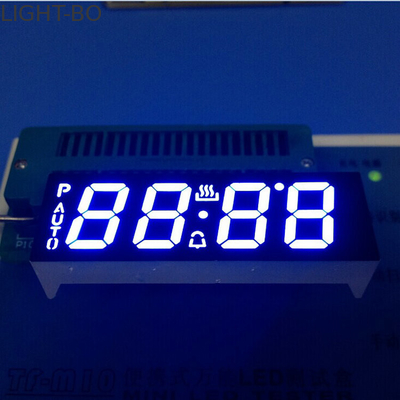

635nm 10mm 100mcd led 7 segment display For Digital Oven Timer 0

applications:

Ideal for home appliances ,

Built-in Oven Control,
Multifunction Digital Oven Timer Control

and so on

FAQ:

1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
