|Outer Dimension:||30*27*8 Mm||Emitting Colour:||Super Bright Red|
|Digit Height:||0.39"( 10mm)||Polarity:||Common Cathode|
Dual Line 7 Segment LED Display,
7 Segment LED Display Common Cathode,
0.39in 3 Digit LED Display

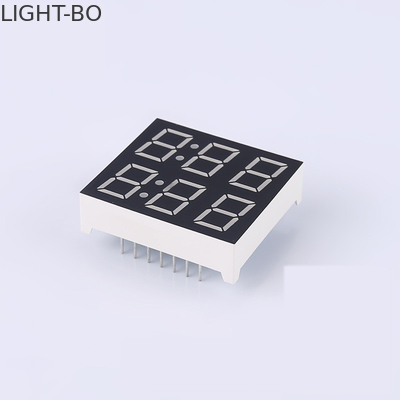

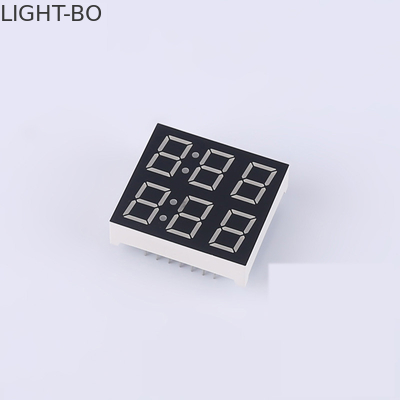

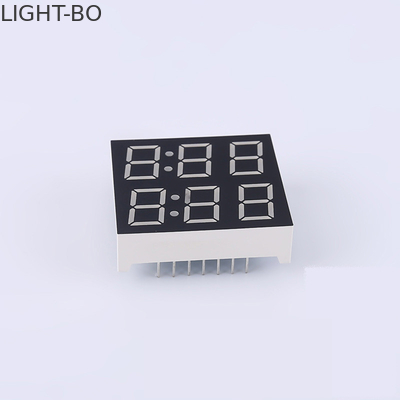

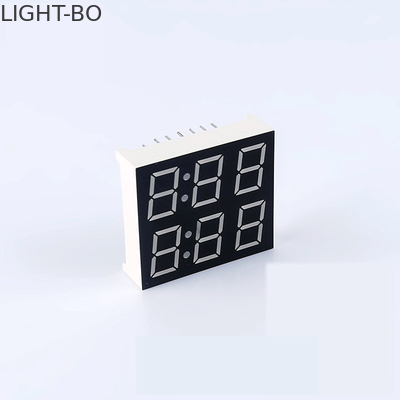

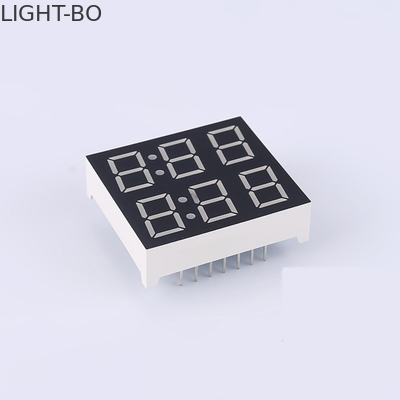

Customized Dual Line 3 Digit 7 Segment LED Display Common Cathode For Home Appliances
Outer dimensions:30*27*8 mm
Digit height: 0.39"( 10mm)
Emitting color : Super Bright Red
Polarity: Common Cathode
High-luminous intensity output
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe
Code:Ultra Bright Red
|Spectrum With Of Half Value||△λ||If=20mA||20||nm|
Absolute Maximum Ratings(Ta=25℃)
|Forward Current(per dice)||Ipm||20||mA|
|Reverse Voltage(per dice)||Vr||5||V|
|Power Dissipation(per dice)||Pm||80||mW|
|Operating Temperature Range||Topr||-40～+120||℃|
|Storage Temperature Range||Tstg||-40～+120||℃|
|Solder Temperature(3 sec)||Th||260||
LED working lifetime 80,000hrs
Absolute Maximum Rating at Ta=25℃
1.Is your parts new ?
Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.
2.What is your warranty?
Answer: Within one year after package have been received.
3.How to pay the order?
Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.
Answer: If there is any quality problem or question, we could offer technical support or return service.
5.What is your lead time?
Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.
6. May I have a sample for testing?
Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
