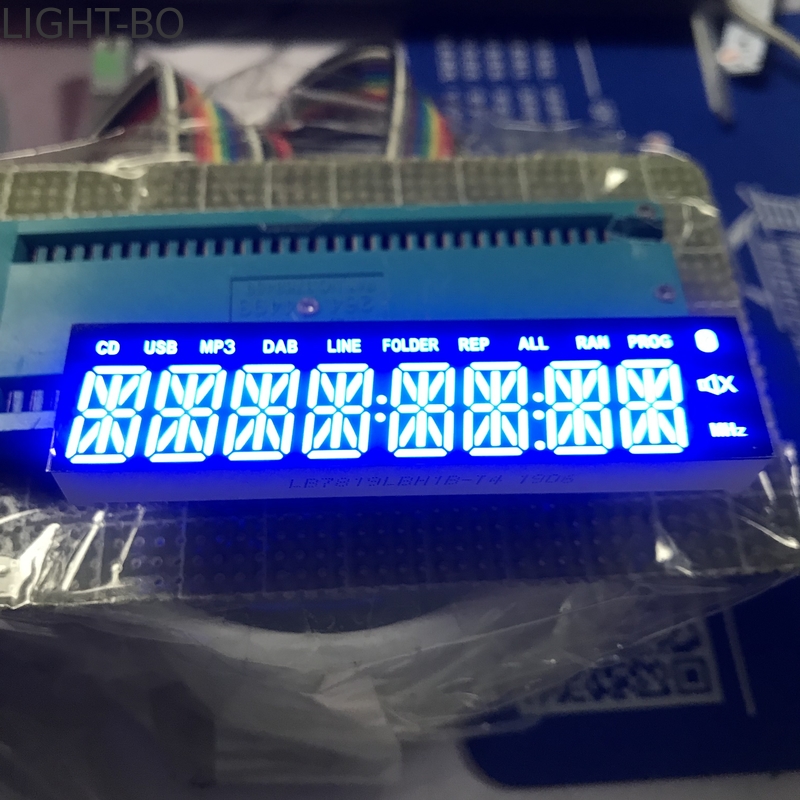

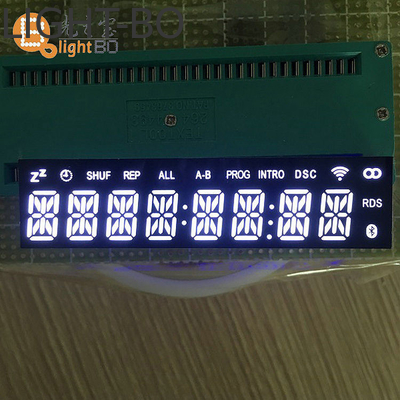

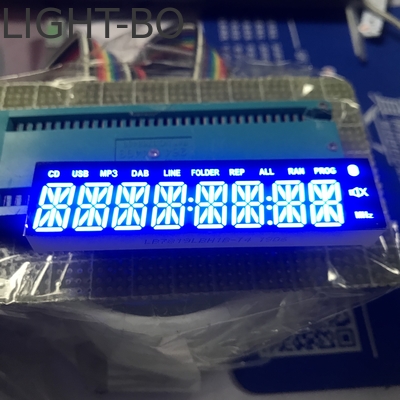

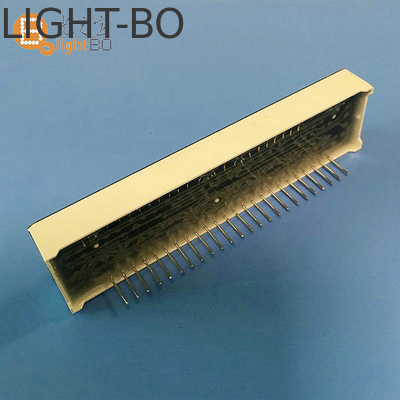

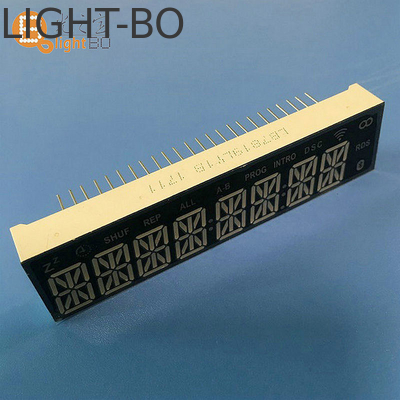

Ultra White Custom 8digit 14 Segment Led Display

Ultra White Custom 8digit 14 Segment Led Display

Brand Name:	LIGHTBO
Model Number:	LB7819
MOQ:	1000PCS
Price:	Negotiation
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Emitting Colour:

Super Bright White

Package Dimension:

78*19mm

Digit Height:

10.5mm (0.4 Inch)

Polarity:

Common Cathode

Lifespan:

80000hrs

Warranty:

2 Years

Packaging Details:

EPE +CARTON

Supply Ability:

50000PCS/Day

Highlight:

8digit Custom LED Display

Ultra White Custom LED Display

14 Segment Custom LED Display

Product Description

Ultra White custom Round shape led display for Virtual pet robot

Features:

Outer dimensions:40*25 mm
Emitting color : Super Bright White&Green
Polarity: Common Cathode

Advantages:

High-luminous intensity output
High-efficiency
Low-power consumption
Extremely low-current
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe

Code:Ultra Bright White

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.6	V
Reverse Voltage	Vr	Ir=40uA		5		V
Luminous Intensty	Iv	If=20mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+120	℃
Storage Temperature Range	Tstg	-40～+120	℃
Solder Temperature(3 sec)	Th	260	℃

LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃

Ultra White Custom 8digit 14 Segment Led Display 0

FAQ:

1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
