Product Details:
|
| Color: | Super Bright White&Green | Outer Dimensions: | 26*38*5(MM) |
|---|---|---|---|
| Polarity: | Common Anode | Means Of Transport: | Ocean, Air, Land |
| Application: | Process Controller | Type: | Standard |
| High Light: | Process Controller 8 Digits Led Display,120mcd 8 Digits Led Display,10uA Seven Segment Display |
||

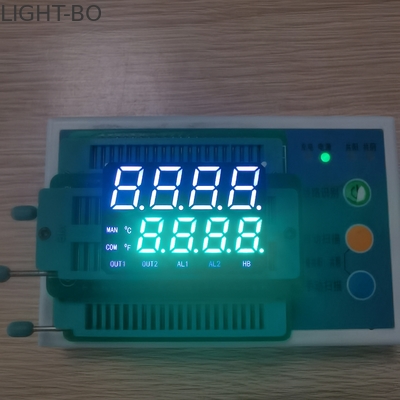

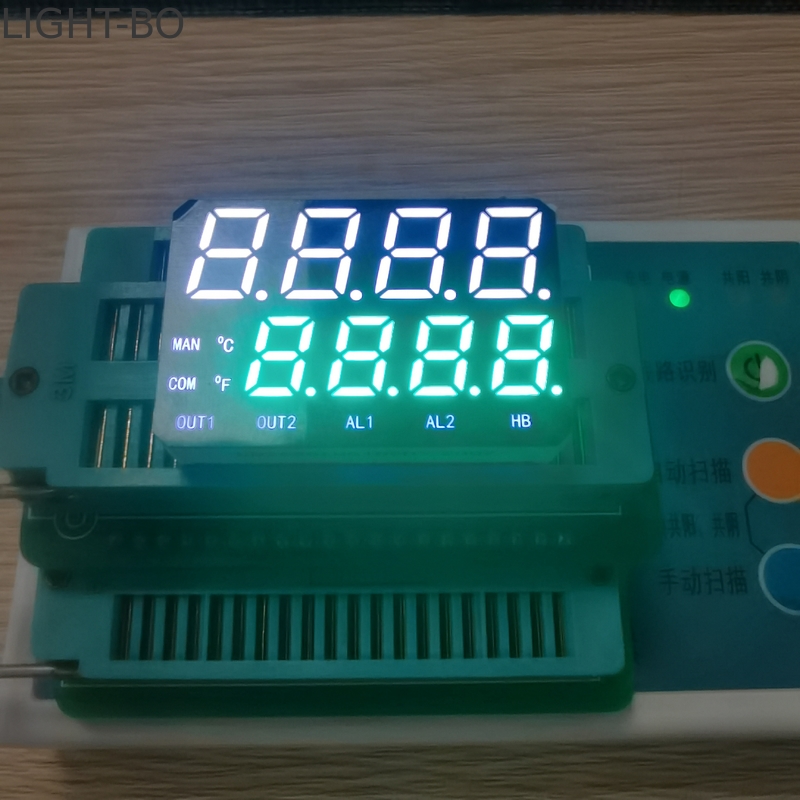

Custom Design Ultra White And Pure Green 8 Digits Seven Segment Led Display For Process Controller
Custom 8 digit 7 segment led display
Dimensions:26*38*5mm
Emitting color: ultra white & pure green
Polarity:Common anode
Code:Pure Green
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 3.0 | 3.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 200 | 220 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 525 | 530 | nm |
Code:Ultra Bright White
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 2.8 | 3.6 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 100 | 120 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 20 | nm |
