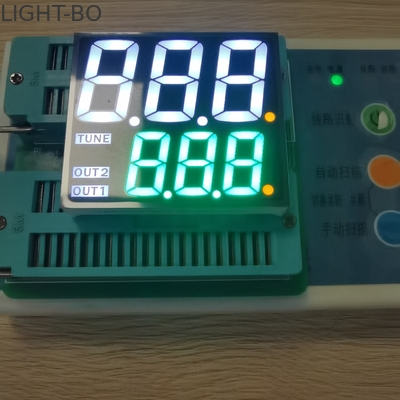

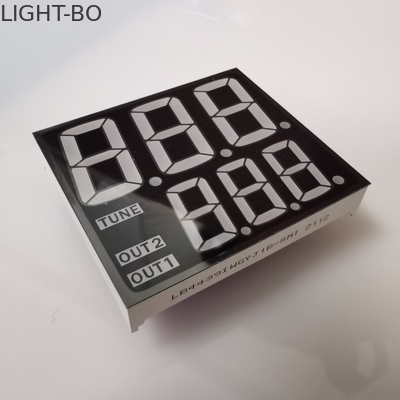

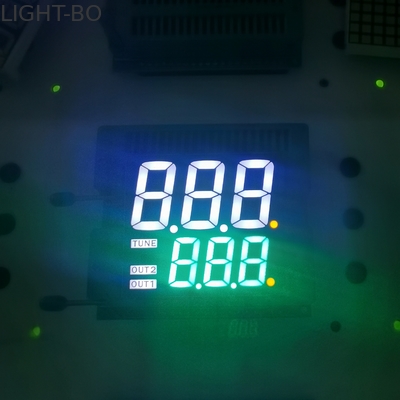

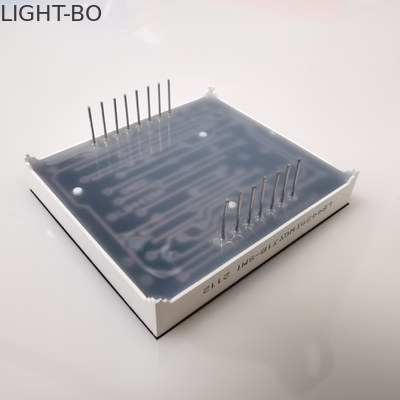

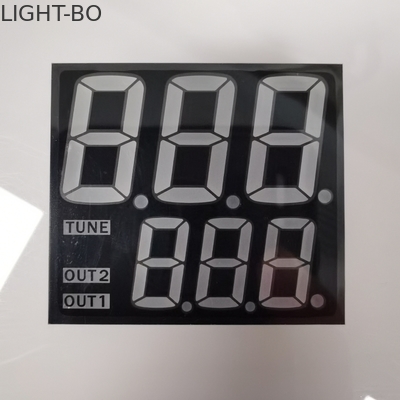

3 Digits Led 7 Segment Display Dual Line 120mcd 20mA For Instrument Panel

Name: 3 Digits Led 7 Segment Display Dual Line 120mcd 20mA For Instrument Panel
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB4439IWGY1B-SMT
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHTBO
Model Number:	LB4439IWGY1B-SMT
MOQ:	1000PCS
Price:	Negotiation
Payment Terms:	TT in advance& Western Union, L/C
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&ISO9100

Color:

Bright White/Green/Amber

Outer Dimensions:

44*39*8mm

Digit Height:

19mm/13mm

Polarity:

Common Anode

Lifespan:

100000hrs

Application:

Instrument Panel

Packaging Details:

EPE+Carton

Supply Ability:

50000PCS/Day

Highlight:

3 Digits Led 7 Segment Display

20mA Led 7 Segment Display

Dual Line Common Anode LED Display

Product Description

Customized Ultra White / Ultra Green Dual Line 3 + 3 Digits 7 Segment LED Display For Instrument Panel

Code:Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	3.0		3.5	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	200		220	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	525		530	nm

Code:Ultra Bright White

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.6	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm

High luminous intensity and reliability
High efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Long lifespan
Easy assembly
IC Compatible
Meet RoHS Compliant

3 Digits Led 7 Segment Display Dual Line 120mcd 20mA For Instrument Panel 0
