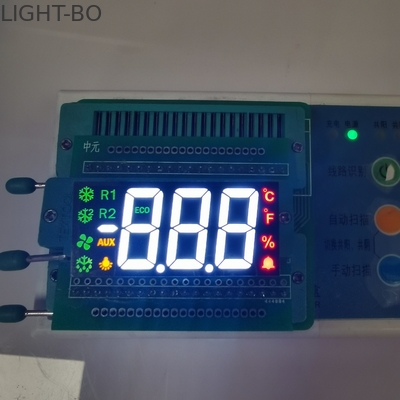

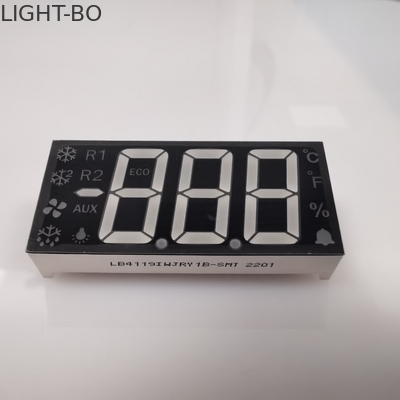

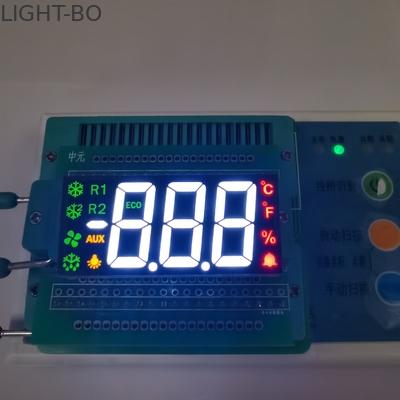

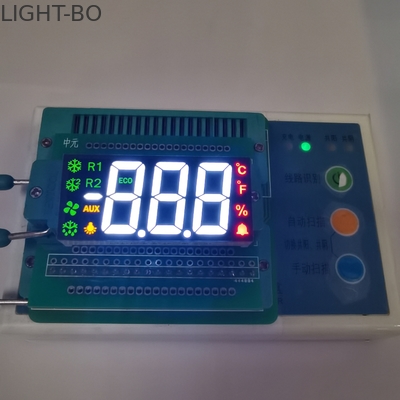

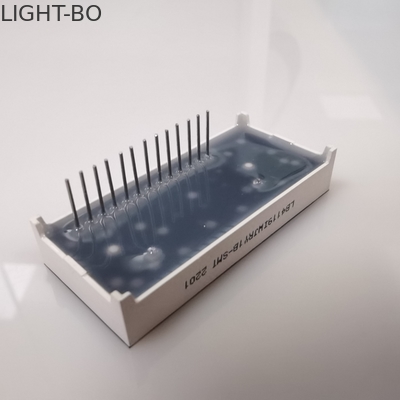

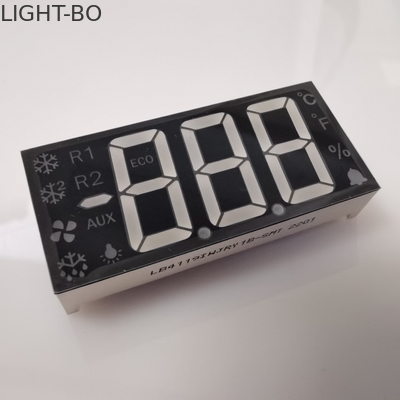

Ultra White/Red /Yellow /Green 3 Digit 7 Segment LED Display For Temperature Control

name

Ultra White/Red /Yellow /Green 3 Digit 7 Segment LED Display For Temperature Control

Brand Name: LIGHTBO
Model Number: LB4119IWRJY1B-SMT
MOQ: 1000PCS
Price: Negotiation
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO9100
Outer Dimension:
41*19*8mm
Emitting Colour:
Red & Yellow-Green&White
Digit Height:
0.62 Inch (15.88mm)
Polarity:
Common Anode
Lifespan:
80000hrs
Usage:
Indoor/Outdoor
Packaging Details:
EPE +CARTON
Supply Ability:
50000PCS/Day
Highlight:

Yellow 7 Segment LED Display

,

3 Digit LED Display

Product Description

Ultra White/Red /Yellow /Green 3 Digit 7 Segment LED Display For Temperature Control

Features:

  • Outer dimensions:41*19*8mm

  • Digit height: 0.62 inch (15.88mm)

  • Emitting color : Red & Yellow-Green&White

  • Polarity: Common Anode

 Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe

Code:Yellow Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 20   40 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength Dλ If=20mA 569   574 nm

Code:Ultra Bright Red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength Dλ If=20mA 625   635 nm

Code:Amber

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA   20   mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength Dλ If=20mA 585   595 nm


Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40～+120 ℃
Storage Temperature Range Tstg -40～+120 ℃
Solder Temperature(3 sec) Th 260

℃

LED working lifetime 80,000hrs,  Absolute Maximum Rating at Ta=25℃

​Ultra White/Red /Yellow /Green 3 Digit 7 Segment LED Display For Temperature Control 0Ultra White/Red /Yellow /Green 3 Digit 7 Segment LED Display For Temperature Control 1
