Send Message
Home ProductsCustom LED Display

18mm Height 7 Segment LED Display 80mW Dual Line 4 Digits For Instrument Panel

Certification
China Shenzhen Guangzhibao Technology Co., Ltd. certification
China Shenzhen Guangzhibao Technology Co., Ltd. certification
Customer Reviews
Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Dennis

Really good service,delivery arrived today and the displays are perfect! thank you.

—— Tim

We have been using the oven’s display, and the quality is very reliable. Hope we can cooperate for a long time.

—— OKIDA

I'm Online Chat Now

18mm Height 7 Segment LED Display 80mW Dual Line 4 Digits For Instrument Panel

18mm Height 7 Segment LED Display 80mW Dual Line 4 Digits For Instrument Panel
18mm Height 7 Segment LED Display 80mW Dual Line 4 Digits For Instrument Panel
18mm Height 7 Segment LED Display 80mW Dual Line 4 Digits For Instrument Panel 18mm Height 7 Segment LED Display 80mW Dual Line 4 Digits For Instrument Panel

Large Image :  18mm Height 7 Segment LED Display 80mW Dual Line 4 Digits For Instrument Panel

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&ISO9100
Model Number: LB5736IWGRJY1B-SMT
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: EPE+Carton
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union, L/C
Supply Ability: 50000PCS/Day

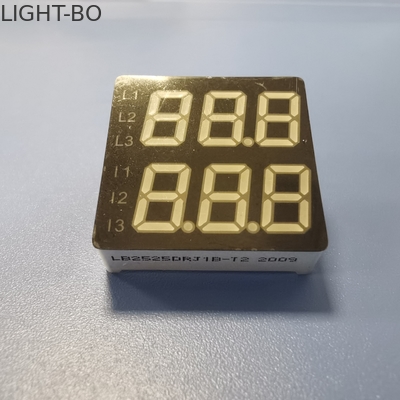

18mm Height 7 Segment LED Display 80mW Dual Line 4 Digits For Instrument Panel

Description
Color: Bright White/Red/Green/Amber Outer Dimensions: 57*36*8mm
Digit Height: 18mm/11mm Polarity: Common Anode
Name: 7 Segment LED Display Application: Temperature Control
High Light:

80mW 7 Segment LED Display

,

Instrument Panel 7 Segment LED Display

,

4 digits 7 segment display

Ultra White / Ultra Green Dual Line 4 + 4 Digits Customized 7 Segment LED Display For Instrument Panel



Quick Detail of Segment LED Displays

1. We can supply you all kinds of 7 segment LED display:

--- Digit size: from 0.25" to 16"

--- Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 16 segment both available

3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color

4. Available surface color: black,grey or red

5. Lens color: white or same as emitting color



Code:Pure Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 3.0   3.5 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 200   220 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 525   530 nm


Code:Ultra Bright White

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8   3.6 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 100   120 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm

Code: Bright Red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.2 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 625   635 nm


Code:Yellow Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 20   40 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 569   574 nm

Code:Amber

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA   20   mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength If=20mA 585   595 nm


Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 100,000hrs, Absolute Maximum Rating at Ta=25

Feature of Segment LED Displays

  1. Low consumption ,working under low voltage and current .
    2) High brightness ,short response time, high frequency.
    3) Small size, lightweight, easy soldered ,great Impact resistance.
    4) Solid state encapsulation, good stability .
    5) Long life ,more than 100,000 hours .
    6) Great display effect ,big viewing angle.

Contact Details
Shenzhen Guangzhibao Technology Co., Ltd.

Contact Person: Mr. JackWu

Tel: +8618320538436

Fax: 86-755-83983484

Send your inquiry directly to us (0 / 3000)
