Product Details:
|
| Emitting Colors: | Pure White | Polarity: | Common Cathode |
|---|---|---|---|
| Dimensions: | 105*51mm | Lifespan: | 100000hrs |
| Application: | Temperature Control | Led Chip: | Epistar |
| Service: | OEM / ODM | Pin Type: | DIP |
Have the advantages of high sensitivity, high touch accuracy, good display effect, strong durability, convenient use,low power consumption,long lifetime and low cost . These advantages make them the mainstream interaction mode in modern intelligent electronic devices, bringing convenience and comfort to people's lives. We can customize the led display sizes,led colours, functional symbols and capacitive touch keys quantity as per customers requirement.

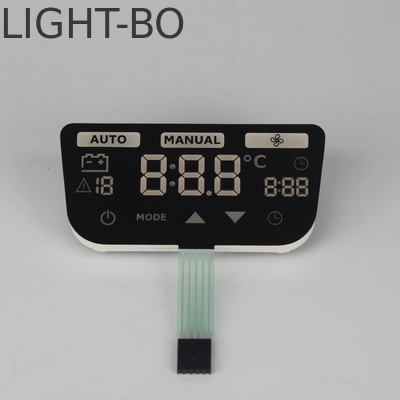

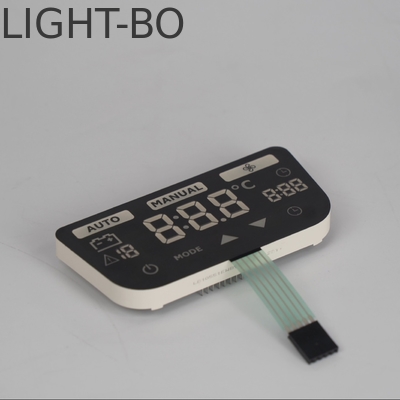

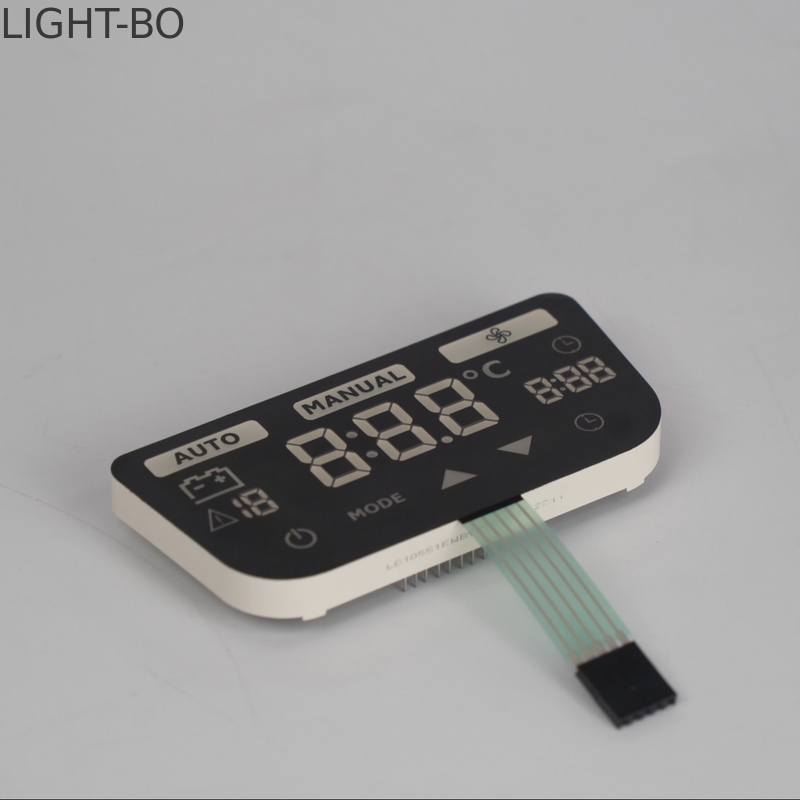

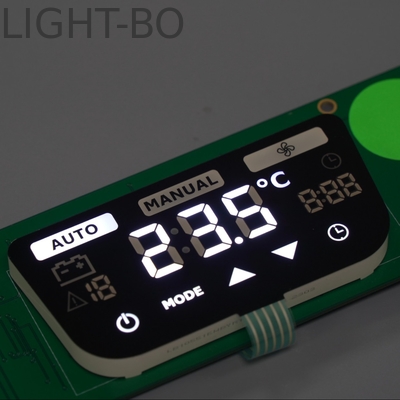

Specification of Segment LED Displays
| Product Name | Custom Seven Segment LED Display | Other Optional |
| Part NO. | LB10551EWBRY1S-SMT | Can print your part number |
| Digit number | 7 digit | 1digit,2digits, 3digits,5digits,6 digits |
| Digit height | 0.25,0.36,0.39....5.0(inch) | |
| Color | White | Red, blue,pure green, yellow-green, orange,etc. |
| Size | 105*51mm | Other size are supported |
| Polarity | Common Cathode | Common Anode |
| Life span | 80000hours | |
| Free Samples | supported | |
| Lead time for sample | 5-7 working days | Tooling samples are 15-20 working days |
| Lead time for formal order | 15-20 working days | According to order quantity |
| OEM&ODM | Support | Based on customer's drawing or idea |
| LOGO printing | Support | Based on customer's drawing or idea |
| MOQ | 1000PCS | Can accept 100-500pcs for first order |
Color:White
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 2.8 | 3.3 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 25 | 35 | mcd | |
| Spectrum With Of Half Value | λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | nm |
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ºC |
| Storage Temperature Range | Tstg | -40~+120 | ºC |
| Solder Temperature(3 sec) | Th | 260 | ºC |
Industrial Equipment
Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
Why choose us?
1. Best quality
- Three times of inspection on all products on production:
Step 1;raw material check
Step 2: process check and full inspection after chip&wire bonding
Step 3: full test before packing and partial check before shipment
2. Best price
- manufacturer
- best suppliers sources
- all products by oneself
3. Our customer
- long-term relationships with Gree, Media, Panasonic, Chigo, TCL, Samsung, Kone Elevators, Hisense etc
4. Company strength
- good quality&competitive price
- listed company
- factory of over 100 workers, with many auto-machines under advanced ERP management.
- management system: ISO 9001:2008,SGS
