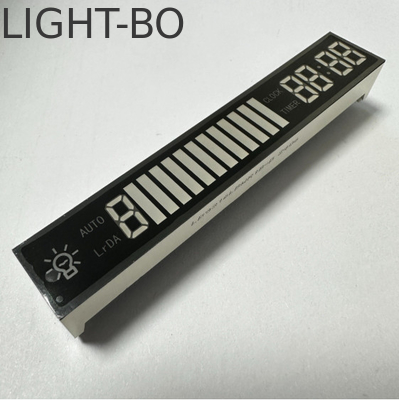

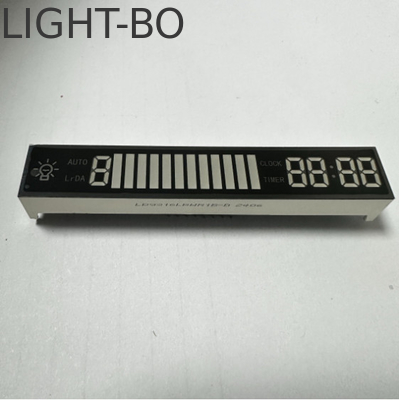

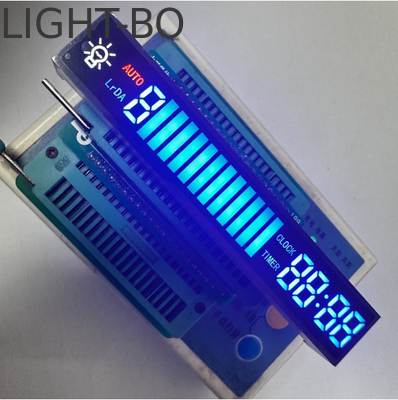

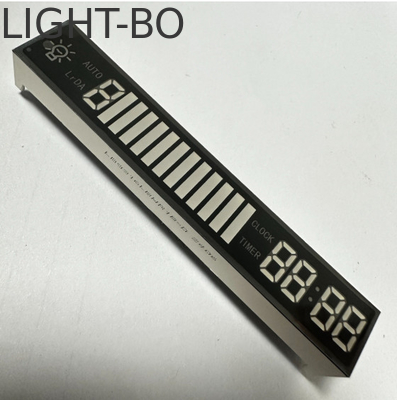

Blue/Red/White Custom Design Led Display Module 7 Segment Common Cathode For Range Hood

Blue/Red/White Custom Design Led Display Module 7 Segment Common Cathode For Range Hood

Brand Name:	LIGHT-BO

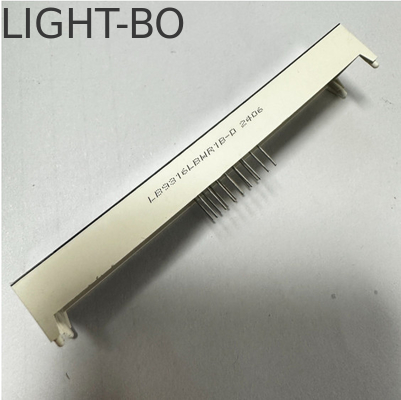

Model Number:	LB9316LBWR1B-D
MOQ:	1000PCS
Payment Terms:	T/T, Western Union
Supply Ability:	50000PCS/Days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001&RoHS

Used:

Range Hood

Led Life:

100,000 Hours

Polarity:

Common Cathode

Emitting Colour:

Blue/Red/White

Material:

Plastic/chip/PCB

Package:

EPE+Carton

Face Colour:

Black

Led Chip:

Epistar,Nation Star,Sanan

Display Dimension:

Customized Size

Packaging Details:

EPE +CARTON

Supply Ability:

50000PCS/Days

Highlight:

Customized LED Electronics Module

Customized Color Display LED Electronics Module

Home Appliance LED Electronics Module

Product Description

High luminous intensity
Low power cumsuption
Stable perforance
Good consistency
Big viewing angle
Longe lifetime
IC compatible
Dispaly can withstand environment temperature +105C - 120C
Meet RoHS/REACH Compliant
LED color: abailable in red,blue, green, white, amber, orange

Code:Ultra Bright Red

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=20mA	25		35	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	625		635	nm

Code:Ultra Bright White

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.6	V
Reverse Voltage	Vr	Ir=40uA		5		V
Luminous Intensty	Iv	If=20mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm

Code:Ultra Bright Blue

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.3	V
Reverse Voltage	Vr	Ir=10uA	30			V
Luminous Intensty	Iv	If=20mA		30		mcd
Spectrum With Of Half Value	△λ	If=20mA		30		nm
Wavelength	Dλ	If=20mA		473

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+120	℃
Storage Temperature Range	Tstg	-40～+120	℃
Solder Temperature(3 sec)	Th	260	℃
