Bright White/Blue Cathode Dual Row Custom 7segment Led Display For Microwave Timer

Bright White/Blue Cathode Dual Row Custom 7segment Led Display For Microwave Timer

Brand Name:	LIGHTBO
Model Number:	LB6060LWB-S-D
MOQ:	1000
Payment Terms:	TT , Western Union
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&ROHS

Package Dimensions:

60*60mm

Polarity:

Common Cathode

Emitting Colour:

White/Blue

Display Brightness:

Ultra Bright

Digits:

Material:

PVC , Epoxy Resin,LED Chip

Usage:

Indoor,Outdoor,Indoor/Outdoor

Application:

Temperature Controlle

Operating Temperature:

-40~105 ℃

Life Span:

80000hours

Forward Current:

20mA

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

7segment Custom LED Display

Microwave Timer Custom LED Display

Dual Row Custom LED Display

Product Description

Code: White

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.3	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=20mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA				nm

Code:Blue

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	30			V
Luminous Intensty	Iv	If=20mA		45		mcd
Spectrum With Of Half Value	△λ	If=20mA		30		nm
Wavelength	Dλ	If=20mA	460		465	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+120	℃
Storage Temperature Range	Tstg	-40～+120	℃
Solder Temperature(3 sec)	Th	260	℃

LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on

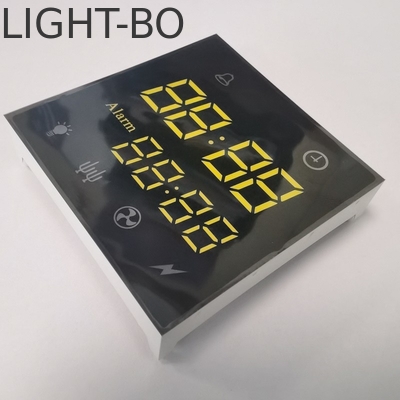

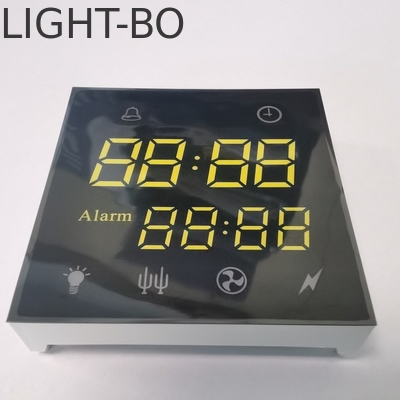

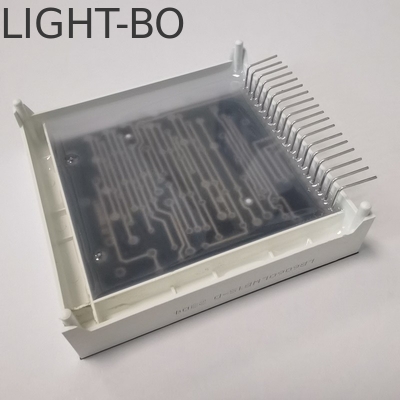

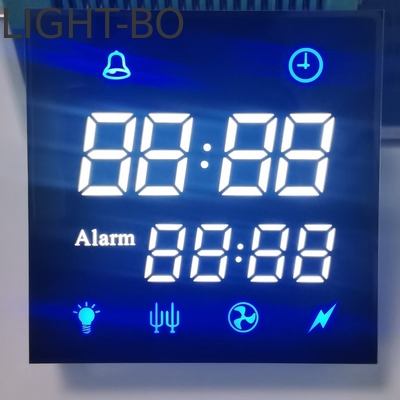

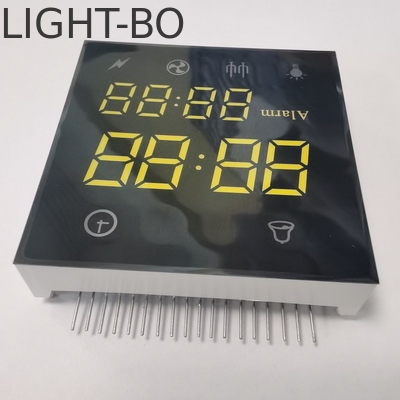

Bright White/Blue Cathode Dual Row Custom 7segment Led Display For Microwave Timer 0

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Segment LED Displays.

Q: How long is your delivery time?
A: Delivery time:About 15-20 days; According to order quantity.

Q: What is your terms of payment?
A: T/T,Western Union,Paypal with small amount.

Q: How can I get your catalogue and price list?

A: Please let us know your email or contact us from website directly for our catalogue and price list.

Q: Can I negotiate the prices?

A: Yes, we may consider discounts for multiple container load of mixed goods.

Q: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping.

We will offer the charge to you as you requested.

Q: May I have some samples for testing?

A: Yes,we can provide 5-10pcs free samples in your delivery cost.
