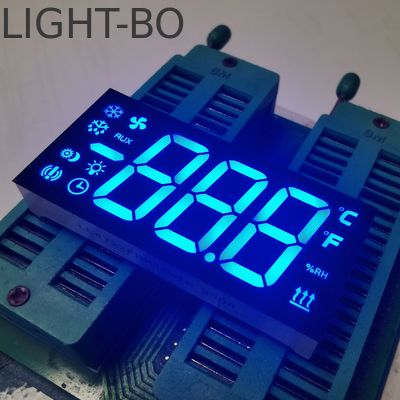

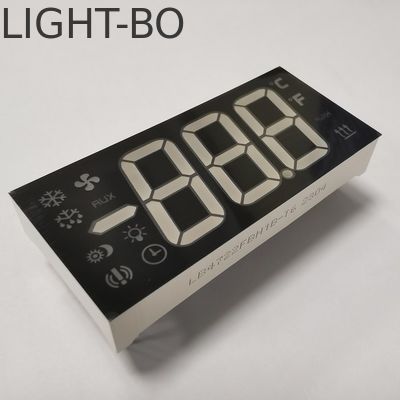

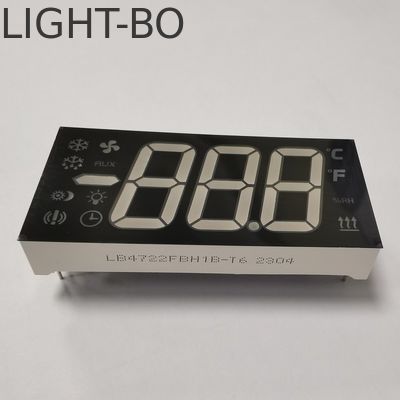

Custom Ultra Blue 3 digit 7 segment LED display Common Cathode for Refrigerator Controller

Custom Ultra Blue 3 digit 7 segment LED display Common Cathode for Refrigerator Controller

Brand Name: LIGHT-BO
Model Number: LB4722FBH1B-T6
MOQ: 1000
Price: Negotiate
Payment Terms: TT in advance
Supply Ability: 20000pcs/days
Detail Information
Place of Origin:
Shenzhen,china
Certification:
ISO9001&RoHS
Outer Dimension:
47*22*8MM
Life Time:
More Than 2 Years
Surface:
White Segments Black Surface
Digit Height:
17mm
Advange:
Timely Delivery
Luminous Intensity:
80-100mcd
Packaging Details:
EPE+Carton
Supply Ability:
20000pcs/days
Highlight:

Ultra Blue 7 Segment LED Display

,

Refrigerator Controller 7 Segment LED Display

,

3 Digit 7 Segment LED Display

Product Description

Product Description

Ultra bright blue Triple Digit 7 Segment LED Display common cathode for Refrigerator Controller



  • Character height: 17mm (0.67inch)

  • Outer dimensions: 47 x 22 x 8 mm

  • Polarity: common cathode

  • Emitting colour: Ultra bright blue

  • Wavelength:460-465

  • Luminous intensity : 80-100mcd

  • Forward voltage: 2.8-3.3V/led

  • Forward current: 5-10mA/led

  • Emitting Colors:available in red, blue, green, white, amber, yellow and orange,Multi-colour



Color:Pure Green

  • Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=20mA 2.5   3.0 V
    Reverse Voltage Vr Ir=10uA   5   V
    Luminous Intensty Iv If=20mA 120   160 mcd
    Spectrum With Of Half Value λ If=20mA   20   nm
    Wavelength If=20mA 515   525 nm
  • Code:Yellow Green- J/JU

  • Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 1.8   2.4 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 30   40 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength If=10mA 569   573 nm
  • Code:Amber/Yellow -Y

  • Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 1.8   2.4 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 50   60 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength If=10mA 585   595 nm
  • Code:Orange -F

  • Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 1.8   2.4 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 50   60 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength If=10mA 600   605 nm
  • Code:Super Bright Red -R

  • Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 1.8   2.2 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 50   60 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength If=10mA 630   635 nm
  • Code:Ultra Bright Red -UR

  • Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 1.8   2.2 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 90   100 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength If=10mA 620   625 nm
  • Code:Ultra Bright Blue -BH

  • Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 2.6   3.0 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 100   120 mcd
    Spectrum With Of Half Value △λ If=10mA   20   nm
    Wavelength If=10mA 460   470 nm

  • Code:Ultra Bright White -WH

  • Parameter Symbol Condition Min Typ Max Unit
    Forward Voltage Vf If=10mA 2.6   3.0 V
    Reverse Voltage Vr Ir=10uA 5     V
    Luminous Intensty Iv If=10mA 120   140 mcd
    LED color Temperature K If=10mA 5500 20 6800 K
    Chromaticity Coordinates X/Y If=10mA 0.29,0.32   0.30,0.33 nm
  • Absolute Maximum Ratings(Ta=25℃)

  • Parameter Symbol Ratings Unit
    Forward Current(per dice) Ipm 20 mA
    Reverse Voltage(per dice) Vr 5 V
    Power Dissipation(per dice) Pm 80 mW
    Operating Temperature Range Topr -40~+120
    Storage Temperature Range Tstg -40~+120
    Solder Temperature(3 sec) Th 260

Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.
