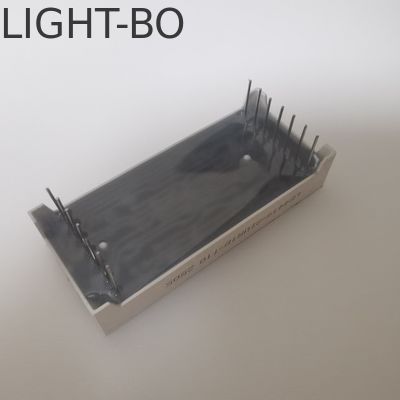

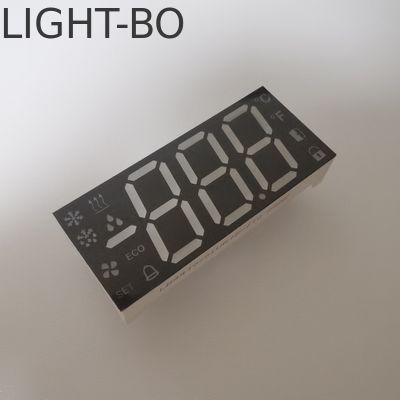

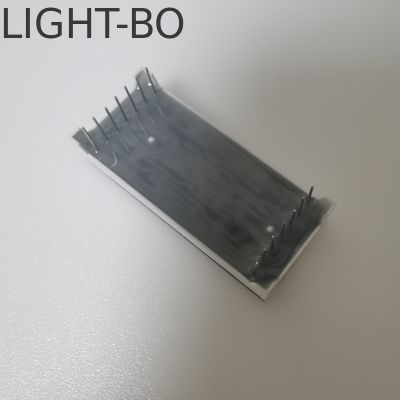

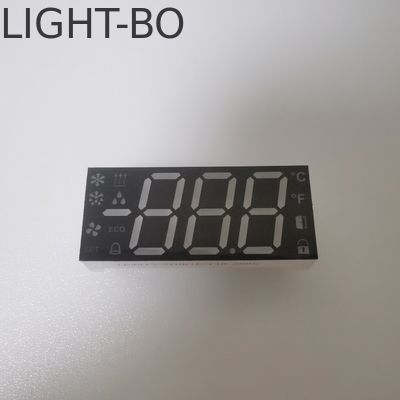

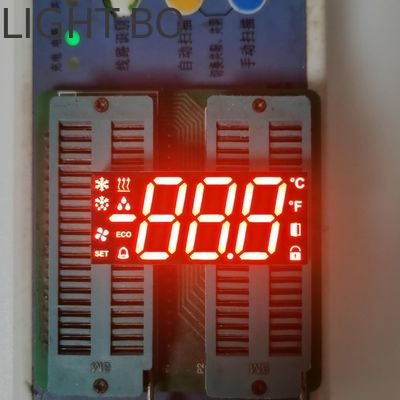

Ultra Bright Red Common Cathode Custom Seven Segment Led Display For Refrigerator/Freezer Control

name

Ultra Bright Red Common Cathode Custom Seven Segment Led Display For Refrigerator/Freezer Control

Brand Name: LIGHTBO
Model Number: LB4419-3IUR1B-T0
MOQ: 1000
Price: Negotiate
Payment Terms: TT,Western Union
Supply Ability: 50000pcs/days
Detail Information
Product Description
Detail Information
Place of Origin:
SHENZHEN，CHINA
Certification:
ISO:9001&RoHS
Package Dimensions:
44*19*9mm
Polarity:
Common Cathode
Emitting Colour:
Red
Display Brightness:
Ultra Bright
Digits:
3
Material:
PPO+LED Chip
Usage:
Indoor,Outdoor,Indoor/Outdoor
Application:
Refrigerator/Freezer
Operating Temperature:
-40~85 ℃
Life Span:
100000hours
Forward Current:
20mA
Packaging Details:
EPE+Carton
Supply Ability:
50000pcs/days
Product Description

Ultra Bright Red Common Cathode Custom Seven Segment Led Display For Refrigerator/Freezer Control 0



COLOR:

LED CODE EMITTING COLOUR WAVELENGTH(NM) LUMINOUS INTENSITY(MCD) FORWARD VOLTAGE(V) FORWARD CURRENT(mA)
R SUPER BRIGHT RED 630-635 50-60 1.8-2.2 5-10
UR ULTRA BRIGHT RED 620-625 90-100 1.8-2.2 5-10
J YELLOW GREEN 569-573 30-40 1.8-2.4 5-10
Y YELLOW (AMBER) 585-595 50-60 1.8-2.4 5-10
F ORANGE 600-605 50-60 1.8-2.4 5-10
G PURE GREEN 515-525 120-160 2.5-3.0 5-10
BH(B) BLUE 460-470 100-120 2.6-3.0 5-10
WH(W) WHITE / 120-140 2.6-3.0 5-10

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40～+120 ℃
Storage Temperature Range Tstg -40～+120 ℃
Solder Temperature(3 sec)
Th		 260 ℃

LED working lifetime 100,000hrs, Absolute Maximum Rating at Ta=25℃



Ultra Bright Red Common Cathode Custom Seven Segment Led Display For Refrigerator/Freezer Control 1





Shipment:

Ultra Bright Red Common Cathode Custom Seven Segment Led Display For Refrigerator/Freezer Control 2
