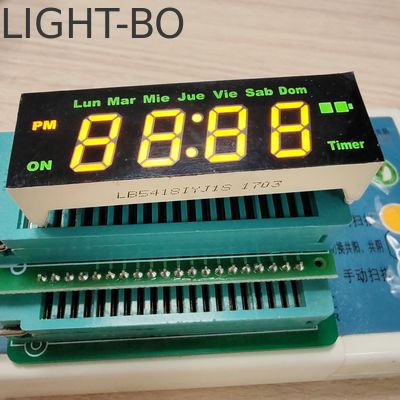

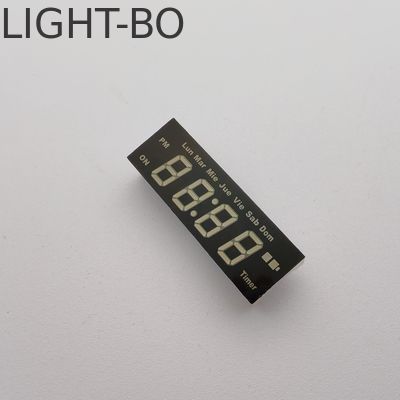

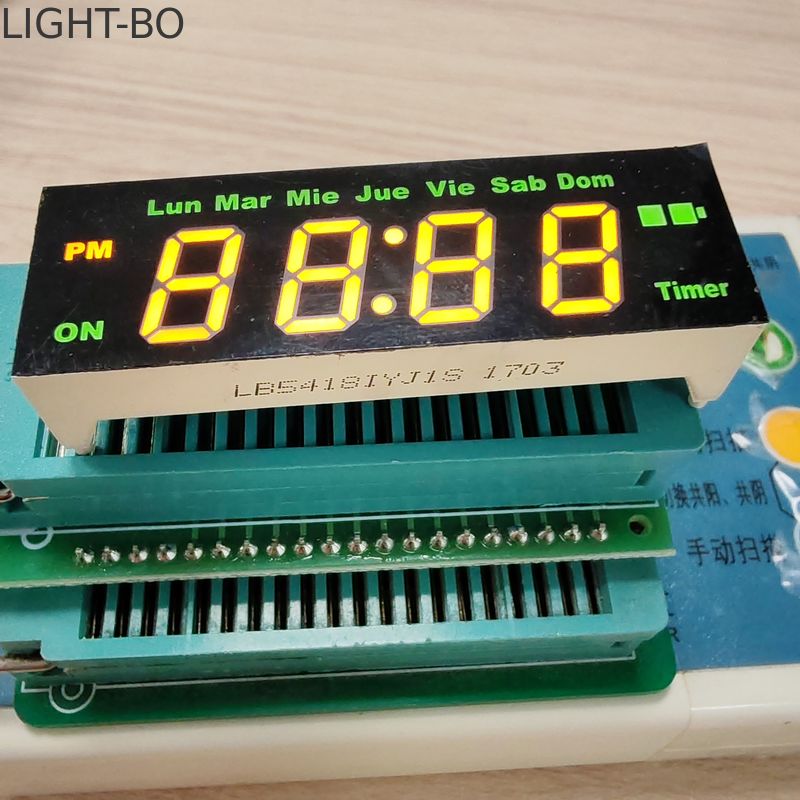

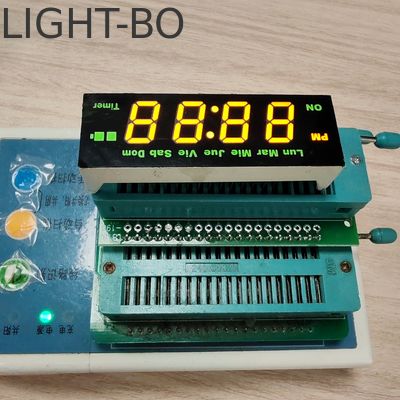

Yellow/Green 4 Digit 7 Segment LED Display for timer control

Yellow/Green 4 Digit 7 Segment LED Display for timer control

Brand Name: LIGHT-BO
Model Number: LB5418IYJ1S
MOQ: 1000
Price: Negotiate
Payment Terms: TT in advance
Supply Ability: 50000pcs/days
Detail Information
Place of Origin:
SHENZHEN,CHINA
Certification:
ISO9001&RoHS
Wavelength:
585-595nm
Luminous Intensity:
50-60mcd
Dimensions:
54.34×17.6×11.5mm
Screen Dimension:
Customized Size
Supplier Type:
ODM, OEM, Original Manufacturer,
Warranty:
2-3 Years
Packaging Details:
EPE+Carton
Supply Ability:
50000pcs/days
Product Description

Yellow/Green 4 Digit 7 Segment LED Display for timer control



  1. Physical Dimensions:

    • Package Size: 54.34×17.6×11.5mm (precision engineered)

    • Character Height: 10.16mm (optimal visibility)

    • Face Color: Matte black (enhanced contrast)

  2. Electrical Characteristics:

    • Polarity: Common anode

    • Forward Voltage: 2.8-3.2V (low power operation)

    • Luminous Intensity: 100-120mcd/LED (high brightness)

  3. Optical Performance:

    • Primary Color: Yellow/Green

    • Available Emitting Colors:
      • Red/Blue/Yellow Green
      • Pure Green/White/Amber
      • Orange/Yellow (full spectrum options)

    • Chromaticity Coordinates: X=0.29-0.31, Y=0.29-0.31

  4. Key Features:

    • Wide viewing angle

    • Consistent light distribution

    • RoHS compliant materials

    • Industrial-grade durability



Product Features & Advantages:

  1. Superior Optical Performance

    • High-efficiency design delivers bright, uniform illumination

    • Perfectly balanced luminous distribution across all segments

    • Maintains excellent visibility even in bright ambient light conditions

  2. Energy Efficient Operation

    • Optimized forward voltage for maximum luminous intensity

    • Ultra-low power consumption design

    • Extremely low operating current requirements

  3. Robust Construction & Reliability

    • Industrial-standard sizing for universal compatibility

    • Engineered for stable, consistent performance

    • Extended operational lifespan exceeding industry standards

  4. Compliance & Safety

    • Fully compliant with RoHS/REACH environmental directives

    • Manufactured using premium, durable materials

    • Rigorous quality testing ensures dependable operation



Color:Pure Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.5   3.0 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 120   160 mcd
Spectrum With Of Half Value λ If=20mA   20   nm
Wavelength If=20mA 515   525 nm

Code:Yellow Green- J/JU

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8   2.4 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=10mA 30   40 mcd
Spectrum With Of Half Value △λ If=10mA   20   nm
Wavelength If=10mA 569   573 nm

Code:Amber/Yellow -Y

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8   2.4 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=10mA 50   60 mcd
Spectrum With Of Half Value △λ If=10mA   20   nm
Wavelength If=10mA 585   595 nm

Code:Orange -F

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8   2.4 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=10mA 50   60 mcd
Spectrum With Of Half Value △λ If=10mA   20   nm
Wavelength If=10mA 600   605 nm

Code:Super Bright Red -R

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8   2.2 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=10mA 50   60 mcd
Spectrum With Of Half Value △λ If=10mA   20   nm
Wavelength If=10mA 630   635 nm

Code:Ultra Bright Red -UR

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8   2.2 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=10mA 90   100 mcd
Spectrum With Of Half Value △λ If=10mA   20   nm
Wavelength If=10mA 620   625 nm

Code:Ultra Bright Blue -BH

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6   3.0 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=10mA 100   120 mcd
Spectrum With Of Half Value △λ If=10mA   20   nm
Wavelength If=10mA 460   470 nm
