4 Digit 7 Segment Yellow/Green LED Display For Timer Control

Name: 4 Digit 7 Segment Yellow/Green LED Display For Timer Control
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB5418LYJ1S
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB5418LYJ1S
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Document:

LB5418IYJ1S 20150403.pdf

Wavelength:

585-595NM

Luminous Intensity:

50-60MCD

Dimensions:

54.34×17.6×11.5MM

Screen Dimension:

Sustomized Size

Supplier Type:

ODM, OEM, Original Manufacturer,

Warranty:

1-3 Years

Origin:

Shenzhen

Emitting Colour:

Ultra Bright Blue

Led Brand:

EPISTAR

Cabinet Material:

Iron Steel

Display Brightness:

Ultra Bright

Face Colour:

White Segment Black Face

Specification:

Video Wall, Digital Poster

Tradecolor Term:

EXW

Emitting Color:

Ultra Bright Blue

Contrast Ratio:

≥ 3000:1

Brightness:

≥ 1000 Nits (typical)

Dimenisons:

41mm*8mm

More Available:

P4.81, P6.67, P8, P10, Etc..

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

timer control 4 Digit LED Display

7 Segment Yellow/Green LED Display

Product Description

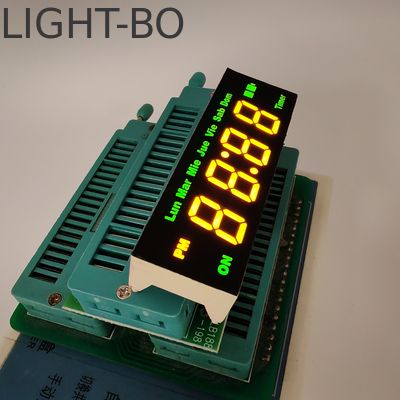

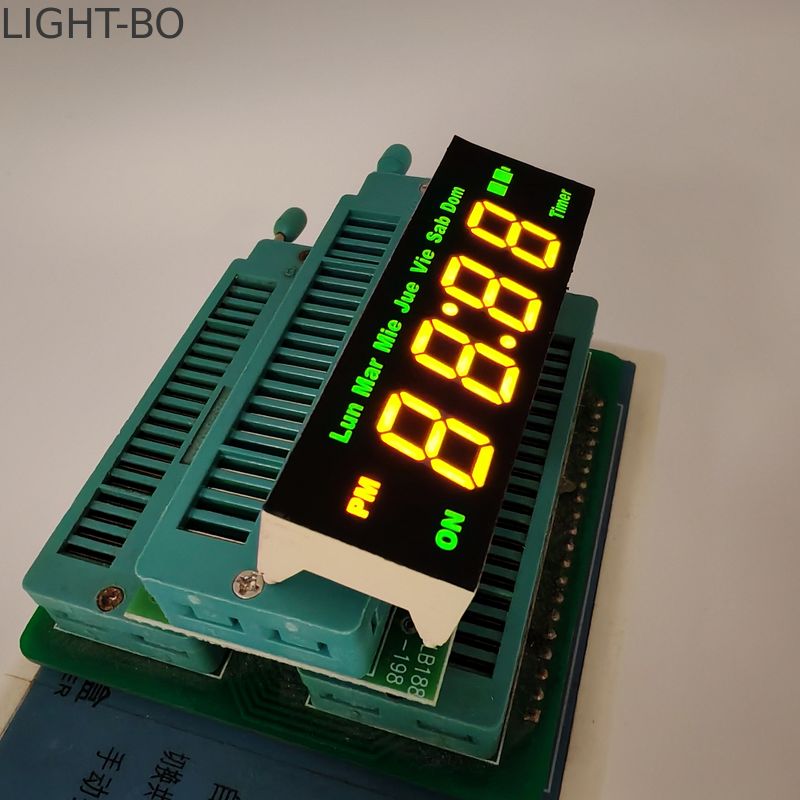

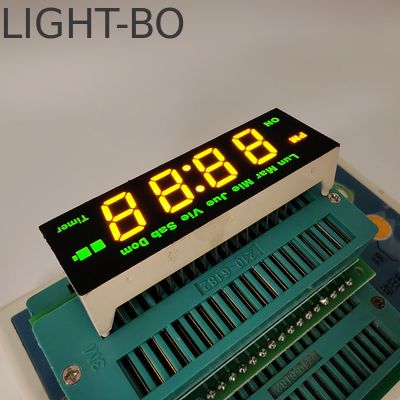

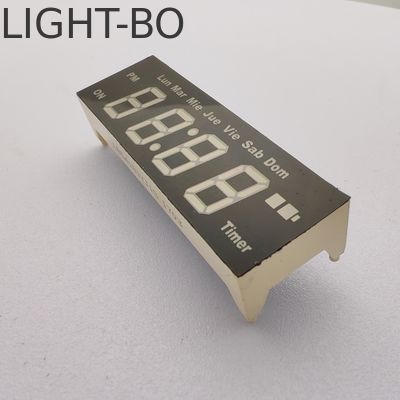

4 Digit 7 Segment Yellow/Green LED Display For Timer Control

Yellow/Green 4 Digit 7 Segment LED Display for timer control applications, offering superior performance and reliability.

Physical Dimensions

Compact package: 54.34×17.6×11.5mm (L×W×H)
Optimal character height: 10.16mm
Matte black face for superior contrast (light absorption >90%)

Electrical Parameters

Common cathode configuration
Energy efficient: 2.8-3.2V forward voltage
High brightness: 100-120mcd/LED output

Optical Characteristics

Standard yellow/green display
Full color options available: Red, Blue, Pure Green, White, Amber, Orange, Yellow
Precise chromaticity: X/Y coordinates 0.29-0.31

Performance Advantages

140° ultra-wide viewing angle
<5% luminosity variation between segments
50,000+ hours operational lifespan
40% lower power consumption vs conventional LEDs
Vibration resistance
Instant-on capability with <1ms response time
UV-resistant epoxy encapsulation

Certifications & Compliance

RoHS/REACH compliant components
IPC-610 Class 2 manufacturing standards
Operating temperature: -30°C to +85°C

Technical Specifications

Yellow Green - J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) stands as a paragon of excellence in OEM and ODM solutions since 2006. With ISO 9001:2015 certification, our rich history of over 15 years highlights our unwavering commitment to innovation and superior quality.

Product Applications

Our cutting-edge LED displays including 7 Segment LED Display, Customized LED Display, and Numeric LED Display are engineered for applications in household appliances, temperature and humidity monitoring, refrigerator controllers, thermostats, and HVAC systems.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping and Transportation

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs, but we can accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. For urgent orders with available raw materials, we can adjust production to complete within 7-10 days.

Q6: What is your terms of payment?

A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Payment methods are negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Please provide your email address or contact us directly from our website for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will provide charges upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED color and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only, and will not show it to anyone else?

A: Yes, we will not show or sell your design to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What is the shipping methods?

A: We usually ship by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc. You can choose the method that works best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with over 20 years experience. We conduct twice 100% testing for all products before shipment.
