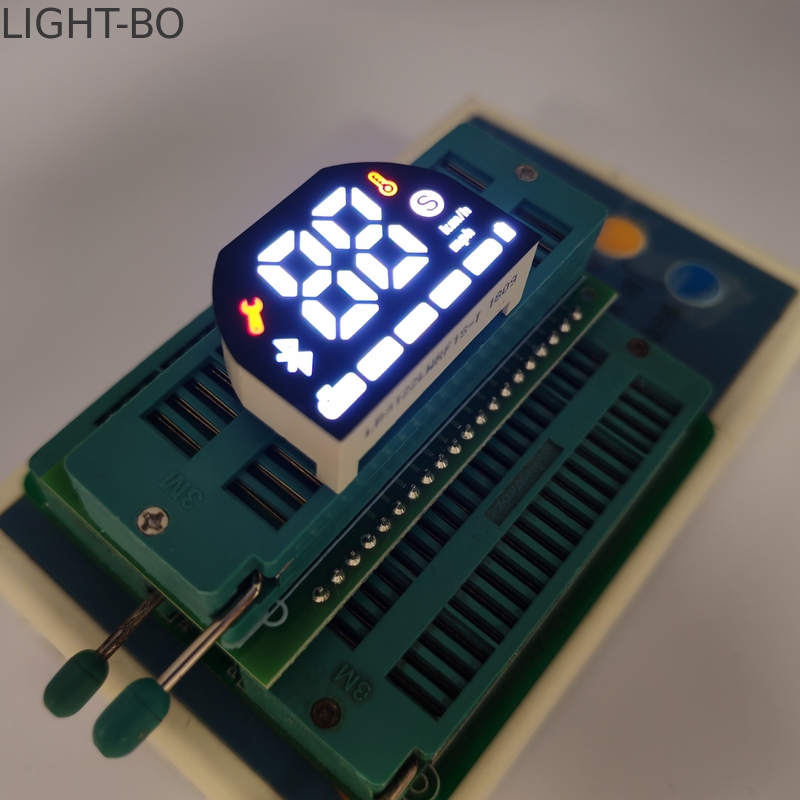

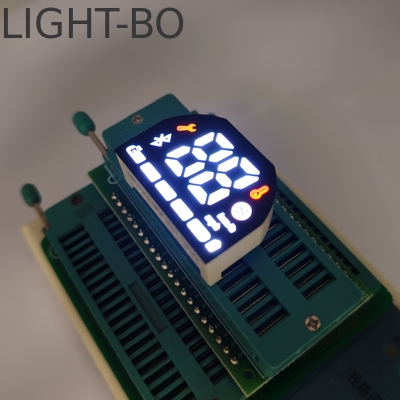

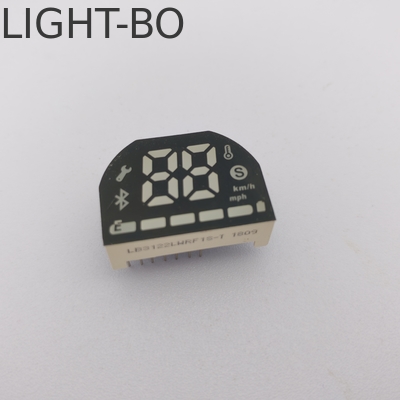

Customized common anode 7 Segment LED Display for Electric Scooter

Name: Customized common anode 7 Segment LED Display for Electric Scooter
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB3122IWRF1S-T
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB3122IWRF1S-T
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Dimensions:

31*22.1*11MM

Operating Temperature:

-40~105 ℃

Character Height:

12.88MM

Supplier Type:

ODM, OEM, Original Manufacturer,

Tube Chip Color:

Full Color

Screen Dimention:

Customized Size/Curve

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

custom common anode 7 segment LED display

electric scooter LED display

customized 7 segment display with warranty

Product Description

Custom Common Anode 7 Segment LED Display for Electric Scooters

Customized 7-segment LED displays specifically designed for electric scooter applications, offering superior readability and durability.

Product Specifications

Digit Height	12.88mm (0.25, 0.36, 0.39...5.0 inch options available)
Color Options	White, Red, Orange, Blue, Pure Green, Yellow-Green, and more
Dimensions	31×22.1×11mm (custom sizes supported)
Polarity	Common Anode
Lifespan	80,000 hours
Free Samples	Available
Sample Lead Time	5-7 working days (15-20 days for tooling samples)
Production Lead Time	15-20 working days (based on order quantity)
OEM & ODM	Supported (based on customer drawings or concepts)
LOGO Printing	Available (based on customer specifications)
Minimum Order Quantity	1,000 PCS (100-500 PCS accepted for initial orders)

Key Features

Superior Optical Performance

High forward voltage design delivers exceptional luminous intensity with uniform light distribution across all segments for perfect readability.

Energy Efficient Operation

Ultra-low power consumption design with minimal operating current requirements.

Robust Construction & Reliability

Industrial-grade components built to standard dimensions, maintaining stable performance in demanding environments with outstanding visibility under bright ambient lighting.

Long-Term Durability

Extended operational lifespan with full compliance to RoHS and REACH environmental standards.

Technical Parameters

Yellow Green (J/JU)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.4	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	30	-	40	mcd
Spectrum Width of Half Value	△λ	If=10mA	-	20	-	nm
Wavelength	Dλ	If=10mA	569	-	574	nm

Amber/Yellow (Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.5	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	60	-	80	mcd
Spectrum Width of Half Value	△λ	If=10mA	-	20	-	nm
Wavelength	Dλ	If=10mA	585	-	595	nm

Orange (F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.4	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	60	-	80	mcd
Spectrum Width of Half Value	△λ	If=10mA	-	20	-	nm
Wavelength	Dλ	If=10mA	600	-	605	nm

Super Bright Red (R)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.2	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	50	-	60	mcd
Spectrum Width of Half Value	△λ	If=10mA	-	20	-	nm
Wavelength	Dλ	If=10mA	630	-	635	nm

Ultra Bright Red (UR)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.2	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	80	-	100	mcd
Spectrum Width of Half Value	△λ	If=10mA	-	20	-	nm
Wavelength	Dλ	If=10mA	625	-	635	nm

Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6	-	3.2	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	120	-	180	mcd
Spectrum Width of Half Value	△λ	If=10mA	-	20	-	nm
Wavelength	Dλ	If=10mA	515	-	525	nm

Ultra Bright Blue (BH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8	-	3.2	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	120	-	140	mcd
Spectrum Width of Half Value	△λ	If=10mA	-	20	-	nm
Wavelength	Dλ	If=10mA	460	-	465	nm

Ultra Bright White (WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8	-	3.2	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	120	-	140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32	-	0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

About Manufacturer

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, we are an ISO 9001:2015 certified manufacturer with over 15 years of OEM and ODM expertise in optoelectronic LED displays. We specialize in providing outstanding, cost-effective custom solutions that help clients reduce expenses while enhancing competitive advantage.

Applications

Our 7-segment LED displays, customized LED displays, numeric LED displays, and dot matrix LED displays are used in various applications including home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and comprehensive heating and cooling systems.

Certifications

Manufacturing Facilities

Company Exhibitions

Shipping Methods

We ship via DHL, FEDEX, UPS, EMS, by air, or by sea based on customer preference.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are an original manufacturer with over 20 years of experience in optoelectronic LED displays.

What are your main products?

Our main products include 7-segment LED displays, SMD LED displays, dot matrix LED displays, arrow LED displays, custom design LED displays, LED light bars, through-hole LEDs, SMD LEDs, and LED backlights.

What is your MOQ?

Our MOQ is 1,000 PCS, but we accept sample orders and small orders of 100-500 PCS for initial orders.

Can I get samples for testing before placing an order?

Yes, we provide 5-10 free samples for testing, with freight costs borne by the customer.

What is your delivery time?

Delivery time is 10-20 days based on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.

What are your payment terms?

We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Can you provide FOB prices?

Yes, we quote prices based on incoterms EXW, FOB, CIF, and DDP.

How can I get your catalog and price list?

Please provide your email address or contact us directly through our website.

Can I negotiate prices?

Yes, we consider discounts for bulk orders.

How much are shipping charges?

Shipping charges depend on shipment size and method. We provide quotes upon request.

Can you do custom design products?

Yes, OEM & ODM services are available. We customize sizes, LED colors, and functional icons according to requirements.

If I send my design, will you keep it confidential?

Yes, we will not show or sell your design to others without authorization.

What is the sample lead time for customized products?

Sample lead time is 20-25 working days after receiving mold cost and mold drawing approval.

How do you ensure product quality?

As ISO 9001 certified manufacturers with over 20 years of experience, we conduct twice 100% testing of all products before shipment.

Product Images

Our company offers a comprehensive range of LED display solutions, including LED segment displays, dot-matrix LED displays, LED display modules, and classic 7-segment LED displays.
