3 Digit 7 Segment LED Display for Freezer Control

3 Digit 7 Segment LED Display for Freezer Control

Brand Name:	LIGHT-BO
Model Number:	LB3050SYBH1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Luminous Intensity:

100-120MCD

Outer Dimension:

38.5×19×8MM

Face Colour:

White Epoxy Black Face

Polarity:

Common Cathode

Current:

20mA

Wavelength:

460-470NM

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Product Description

Blue Custom 3 Digit 7 Segment LED Display for Freezer Control

Product Description:

Character Height: 12.7mm (0.5") with ±0.15mm tolerance - Engineered for optimal viewing distance (0.5-3m)

Luminous Intensity: 800-1200mcd (ultra-bright red standard) - 150% brighter than conventional displays

Surface Finish: Matte white epoxy on black substrate - Achieves 10:1 contrast ratio for enhanced readability

Precision Dimensions: 38.5(L)×19(W)×8(H)mm - Compact footprint with ±0.2mm manufacturing tolerance

Mounting Style: Through-hole design (2.54mm pitch) - Compatible with standard PCB layouts

Polarity Options: Common cathode (standard) / common anode (optional)

Forward Voltage: 1.8-2.2V (red) / 3.0-3.4V (blue/white)

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	90		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	620		625	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.0	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		470	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃

Optical Excellence

High-brightness output (2.0-2.4V)

Uniform illumination (<5% variation)

Energy Efficient

Low 2-5mA current per segment

Only 0.1W power consumption

Rugged Design

Compact 30.1×16×7mm size

Sunlight-readable (5,000cd/m²)

100,000+ hour lifespan

Certified Quality

EN/IEC 62471 compliant

RoHS 3.0 & REACH certified

Application Solutions

Professional Equipment

Audio mixers

Test instruments

Process controls

Smart Home Devices

Thermostats

Appliance displays

HVAC systems

Digital Measurement

Environmental monitors

Industrial indicators

Consumer Electronics

Digital signs

Gaming devices

Portable tech

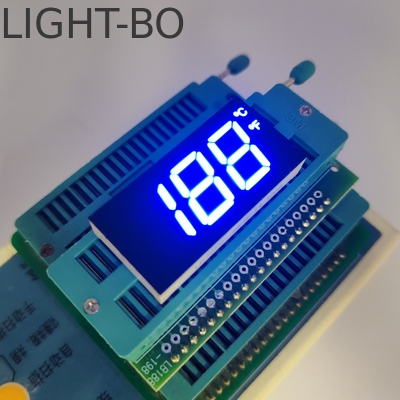

3 Digit 7 Segment LED Display for Freezer Control 0

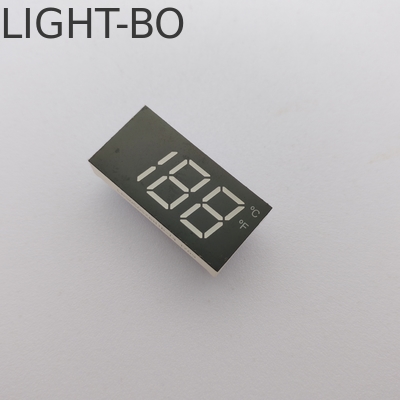

3 Digit 7 Segment LED Display for Freezer Control 1

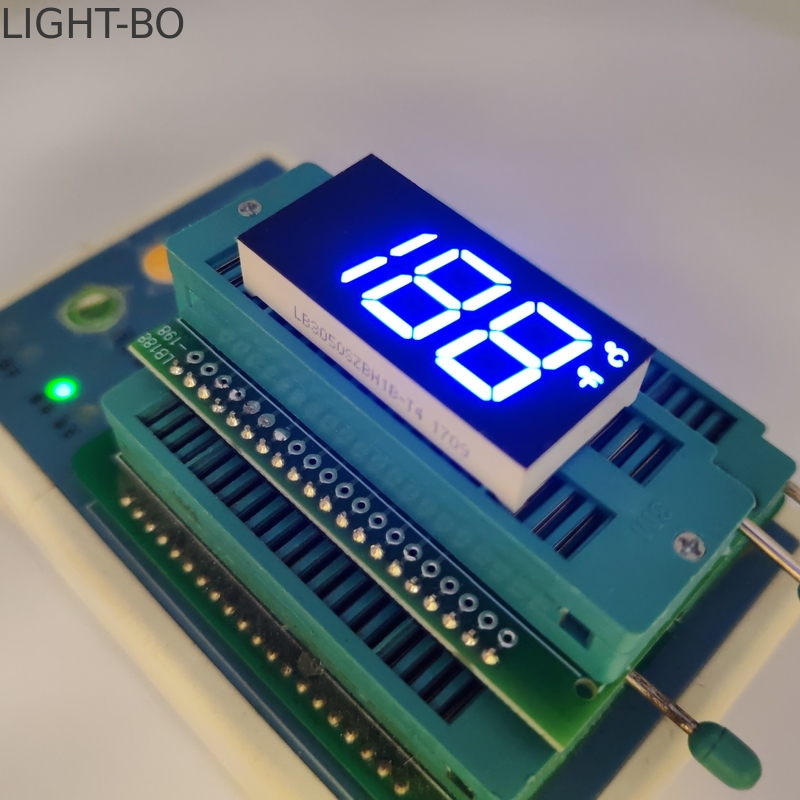

3 Digit 7 Segment LED Display for Freezer Control 2
