Red 5 Digit 7 Segment LED Display for Home Appliances

Name: Red 5 Digit 7 Segment LED Display for Home Appliances
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB50563LR1B
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHTBO
Model Number:	LB50563LR1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Emitting Color:

Ultra Bright Red

Cabinet Material:

Aluminum Or Steel

Polarity:

Common Cathode

Led Life:

100,000 Hours

Ip Rating:

IP54

Screen Dimension:

Sustomized Size

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

red 7 segment LED display

5 digit LED display for appliances

custom LED display for home

Product Description

Red 5-Digit 7-Segment LED Display (Model: LB50563LR1B)

Product Description

Feature	Specification	Customization
Standard Configuration	Available Options
Digit Number	5 digits	2, 3, 4, 5, or 6 digits
Color	Red	White, Blue, Pure Green, Yellow-Green, Orange, etc.
Polarity	Common Anode	Common Cathode
Lifespan	80,000 hours
Free Samples	Supported (5-7 days)	Tooling samples: 15-20 days
Production Lead Time	15-20 days	Quantity-dependent
OEM/ODM	Supported	Based on customer requirements
Logo Printing	Supported	Based on customer artwork
MOQ	1,000 PCS	100-500 PCS for initial orders

Product Highlights: Unveil the extraordinary features that make this LED Display an essential component for any forward-thinking home appliance designer.

Experience unmatched luminous intensity paired with an optimal forward voltage, ensuring that your display commands attention with clarity and precision.
Enjoy the benefits of low power and current consumption, making this display a cornerstone of energy-efficient technology without compromising performance.
Benefit from uniform segment brightness and adherence to industrial standard dimensions, offering seamless integration and aesthetic harmony with your devices.
Count on high reliability in bright ambient light, delivering stable and long-term performance that withstands the test of time.
With a long operational lifetime and compliance with RoHS/REACH standards, this display promises sustainability and peace of mind, affirming its commitment to environmental responsibility.

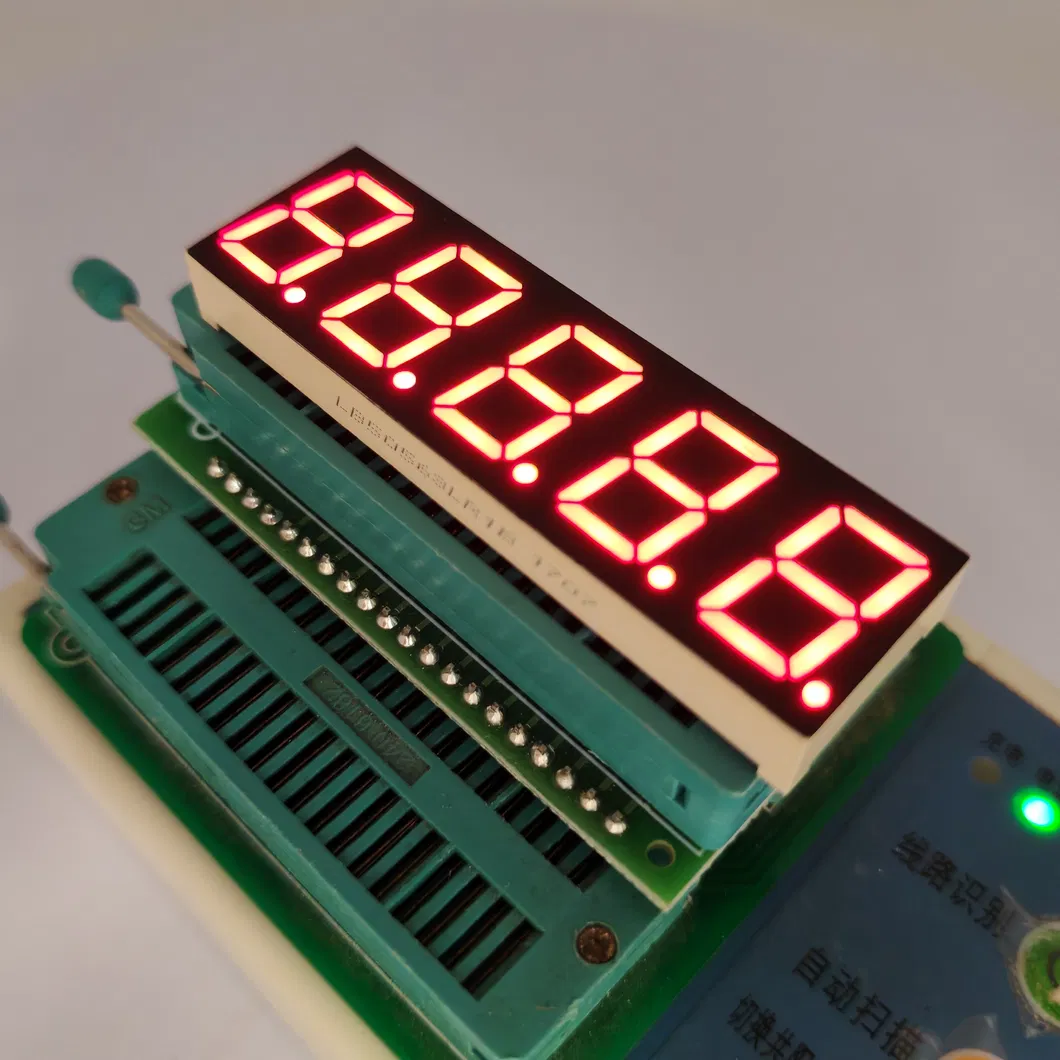

Red 5 Digit 7 Segment LED Display for Home Appliances 0

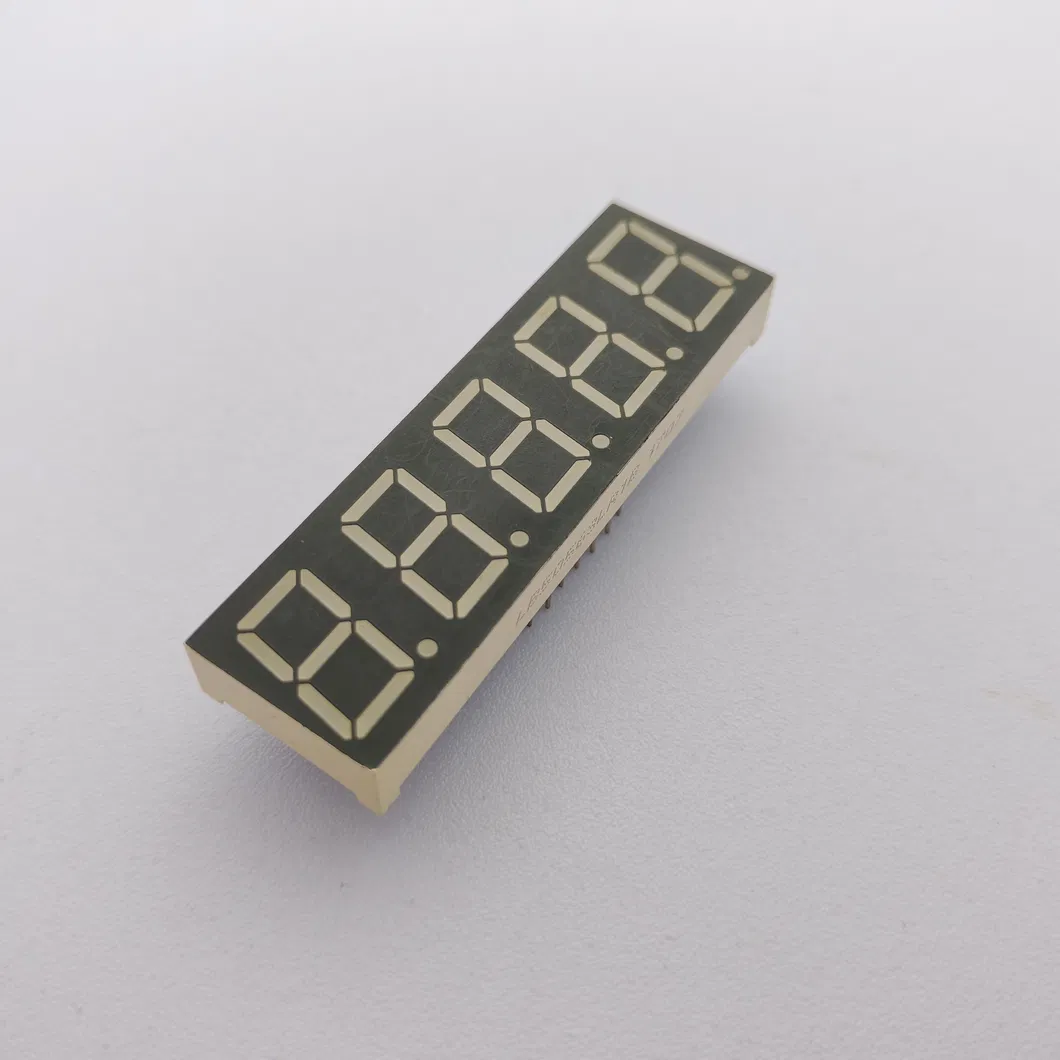

Red 5 Digit 7 Segment LED Display for Home Appliances 1

Product Parameters

Code: Yellow Green - J/JU. Revel in the vibrant hues of our displays, tailored to suit your specific needs.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code: Amber/Yellow - Y. A warm and inviting color option for displays demanding attention.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code: Orange - F. A striking color choice that stands out, perfect for dynamic display settings.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code: Super Bright Red - R. Capture the essence of vibrancy with this rich, eye-catching color.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code: Ultra Bright Red - UR. Elevate your display with intense and vivid red, ensuring maximum visibility.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Color: Pure Green. A refreshing and clear color choice, ideal for eco-friendly designs.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code: Ultra Bright Blue - BH. Transform your display with this cool, bright hue for a modern aesthetic.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code: Ultra Bright White - WH. Achieve unparalleled clarity and elegance with this pristine choice.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC): Delve into the robust performance parameters that define our LED display's outstanding capabilities.

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO), established in 2006, is a trailblazer in optoelectronic LED Display innovation. With ISO 9001:2015 certification, our company exudes excellence in OEM and ODM services, backed by over 15 years of expertise and a legacy of quality and innovation.
LIGHTBO's commitment to high-quality, cost-effective custom solutions propels our clients to new heights, significantly reducing expenses and fortifying their competitive edge in the global marketplace.

Products Applications

Red 5 Digit 7 Segment LED Display for Home Appliances 2 7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display: Our products' applications span across home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and heating and cooling systems, each showcasing our unwavering dedication to innovation and performance.

Certifications

Red 5 Digit 7 Segment LED Display for Home Appliances 3

Office and Factory Overview

Red 5 Digit 7 Segment LED Display for Home Appliances 4

Red 5 Digit 7 Segment LED Display for Home Appliances 5

Red 5 Digit 7 Segment LED Display for Home Appliances 7

Company Exhibitions

Red 5 Digit 7 Segment LED Display for Home Appliances 8

Red 5 Digit 7 Segment LED Display for Home Appliances 9

Various transportation methods

Red 5 Digit 7 Segment LED Display for Home Appliances 10

FAQ

Q1 Are you trading company or manufacturer

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .

Q2 What is your main products

A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .

Q3 What is your MOQ

A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .

Q4 Before placing order, Can I get some samples for test

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5 How long is your delivery time

A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,we can adjust our production plan to make it ready within 7-10 days .

Q6 What is your terms of payment

A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.

Q7 Can you quote me FOB prices

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.

Q8 How can I get your catalogue and price list

A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .

Q9 Can I negotiate the prices

A: Yes, we may consider discounts for bulk orders.

Q10 How much will the shipping charges be

A: It depends on the size of your shipment and the method of shipping.We will offer the charge to you as you requested.

Q11 Can you do custom design products

A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.

Q12 If I send my design , can you make it for myself only ,and will not show it to any one else

A: Yes , we will not show it or sell to others without your authorization.

Q13 IWhat will be the samples lead time for customzied products

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .

Q14 What is the shipping methods

A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.

Q15 How do you ensure the quality of your products

A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
