| Brand Name: | LIGHTBO |
| Model Number: | LB40802EBH1B |
| MOQ: | 1000PCS |
| Price: | Negotiable |
| Payment Terms: | TT in advance& Western Union |
| Supply Ability: | 50000PCS/Day |
0.8 Inch 4 Digit Seven Segment Display Ultra Bright Blue Stable Performance
Product descriptions:
Package dimensions: 71.6 x 25.8 x 7.4 mm
Character height: 20.4mm (0.8 inch)
Colour: Ultra bright blue
Emitting colour: red, yellow, green, blue, orange and white
Product features:
High luminous intensity
Low power consumption
Extremely low current
Stable performance
Continuous uniform segments
Easy mounting on PC boards
Long lifetime
Meet RoHS compliant
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+85 | ℃ |
| Storage Temperature Range | Tstg | -40～+85 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
| Code:W-Ultra Bright Blue | ||||||
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=20mA | 2.8 | 3.5 | V | |
| Reverse Voltage(Per dice) | Vr | Ir=10uA | 30 | V | ||
| Luminous Intensty(Per dice) | Iv | If=20mA | 100 | 120 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 30 | nm | ||
| Wavelength | Dλ | If=20mA | 460 | 465 | nm | |
| LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃ | ||||||
Applications:
Home appliances, instrument panels, digital clock indicators and so on.

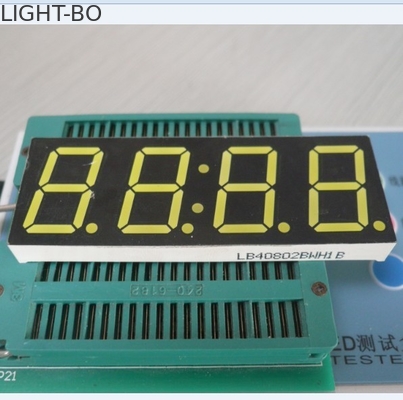

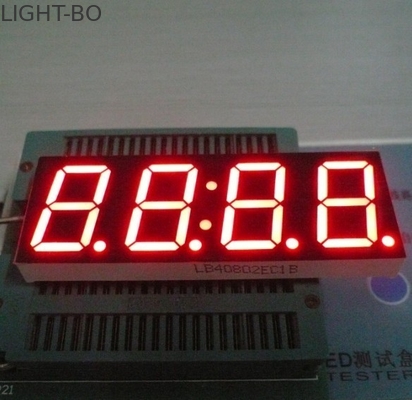

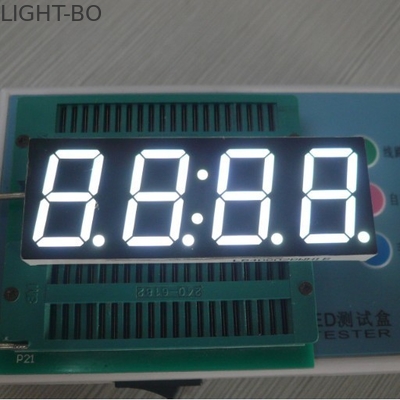

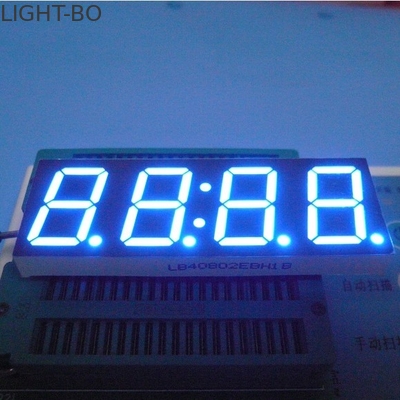

Product Pictures:
