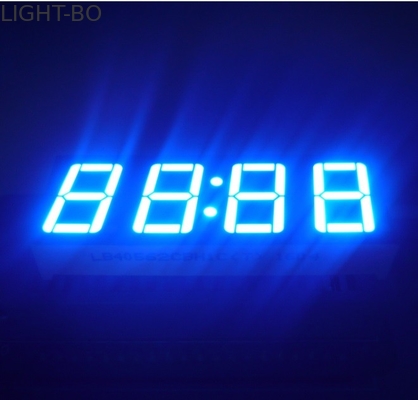

Ultra Blue LED Clock Display 0.56" , Led 4 dight 7 Segment Display 50.4198MM

Ultra Blue LED Clock Display 0.56" , Led 4 dight 7 Segment Display 50.4198MM

Brand Name:	LIGHTBO
Model Number:	LB40562CBH1B
MOQ:	1000PCS
Price:	NEGOTIABLE
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

DIMENSIONS:

50.4*19*8MM

Digit Height:

14.2mm (0.56")

Segment/face Color:

White Diffused Epoxy Black Face

Polarity:

Common Anode

LED Color:

Ultra Blue

Wavelength:

462-465nm

Luminous Intensity:

80-100mcd

Forward Voltage:

2.8-3.3V/LED

Forward Current:

12-15mA/LED

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Day

Highlight:

digital clock display

common anode 7 segment display

Product Description

Ultra Blue LED Clock Display 0.56" , Led 7 Segment Display 50.4*19*8MM

Character height : 14.2mm (0.56 inches)

Outer dimensions: 50.3 x 19 x 8 mm

Yellow diffused epoxy grey suface

Polarity :Common anode

LED color: ultra white

X/Y Coordinate : 0.29-0.31

Luminous intensity: 80-100 mcd/led

Forward voltage: 2.8-3.3v/led

Forward current: 12-15mA/led

Emitting colour: available in red,blue, green,amber, orange, yellow, white

Ultra Blue LED Clock Display 0.56" , Led 4 dight 7 Segment Display 50.4*19*8MM 0

High luminous intensity
Low power consumption
extremely low current
Stable performance
Continuous uniform segments
Easy mounting on PC Boards and sockets
IC Compatible
Long lifetime
Meet RoHS Compliant
Application ;
home appliances, set up boxes, isntrument panels,digital clock indicators ,digital led clock displays and so on.
